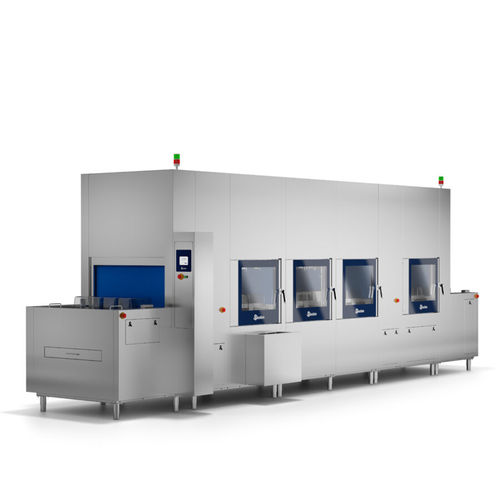

Floor-standing washer-disinfector AC 3500 series

compactautomaticfront-loading

AC 3500 tunnel washer is designed to clean, sanitize and dry cages and utensils used in animal research laboratories. This tunnel washer assures higher throughput, effective waste separation, and water and energy conservation. Each tunnel chamber is provided with a hinged glass door for visual inspection. The combination of high pressure and flow rate ensures excellent washing and rinsing performance, with a productivity of up to 750 cages per hour. To support the growing demand for a compact system for the automatized handling of cages, the system can be integrated with robot technology for loading and unloading procedures. AC 3500 offers an integrated and flexible solution composed of separate modules with dedicated functions – loading, pre-wash, acid/Alkaline wash, rinse and final rinse, drying, and unloading – to wash almost all the cage types available on the market and used in animal research laboratories. Modules can be added or removed for customized solutions. Smart water filtering system Clogged filters are one of the main issues facing operators when processing cages. The amount of solid residues can easily clog the nozzles. We developed a system for fast and easy access to filters for their maintenance. The main filter in the prewash chamber is flushed with flowing water that helps to keep its surface clean. This way, a large amount of residues is collected by a filter which is easily accessible from the outside of the washer.
