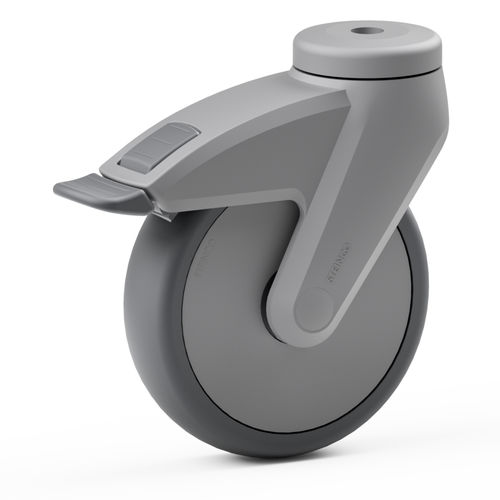

Polyamide wheel SERIES841
with brakeswiveling

polyamide wheel
polyamide wheel
polyamide wheel
polyamide wheel
polyamide wheel
polyamide wheel
polyamide wheel
Add to favorites
Compare this product


Characteristics

Options
polyamide, with brake, swiveling
Load capacity

100 kg, 300 kg
(220 lb, 661 lb)

Wheel diameter

125 mm
(4.921 in)

Description

Single wheel swivel castor, Housing made of polyamide, swivel bearing with double ball bearing, colour: RAL 7004 - Signal grey Locking device with total lock Wheel with ball bearing and non-marking grey thermoplastic tyres (TPE) with thread guard Connection via bolt hole M10mm Special functions: cleaning by wipe disinfection possible without restrictions Wheel - Wheel tyres - TPE Wheel width (mm) - 32 Colour of wheel hub/cover - RAL 7004 - Signal grey Material of wheel hub - Polypropylene Wheel hardness - 90 shore A Wheel bearing - Ball bearing Castor - Wheel axle - Steel riveted Offset (mm) - 40 Swivel radius (mm) - 133 Design - Single wheel swivel castor Swivel bearing - Double-row ball bearing Mounting height (mm) - 161 Thread guard - With thread guard Main colour - RAL 7004 - Signal grey Housing material - Polyamide Conductivity - Non-conductive
