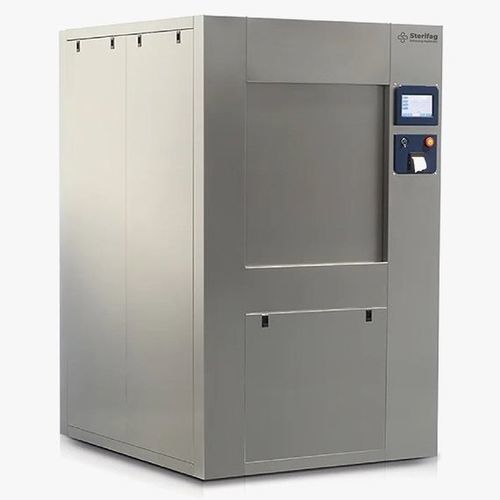

Sterilization service sterilizer SF-SLIDINGDOORSTE-090

CSSDfor central sterilization supply unitshospital

Description Sterifag sliding door steam sterilizers are manufactured to CE, ISO and GMP standards and comply with stringent medical safety requirements. This model is designed for steam sterilization of surgical instruments, textiles, rubber items, plastics, metals and glassware used in hospitals and clinical facilities. The unit includes remote service access for software updates and cycle adjustments. The design focuses on reducing energy and water consumption for economical operation.

Key features

• Vertical sliding door design available in single- and double-door configurations.
• Model capacity: 2000 L. Other volumes available from 150 to 2000 L.
• Sterilization temperature range: 121–140 °C.
• Automatic PLC control system with 7/10-inch multi-colour touchscreen and process controller (Siemens).
• Low power and water consumption.
• Process display with schematics and confirmation screen at program start.
• Data archiving to USB and wide parameter adjustment per program.
• Output of sterilization parameters via built-in printer.
• Multi-level user access and password protection.
• Chamber and steam jacket in acid-proof stainless steel.

Packaging

• Transport trolley(s).
• Loading cart(s).

Warranty One year standard warranty.

Accessories (Optional)

• Water softener.
• RO water unit.
• Air compressor.
• HEPA filter.

Technical specifications

• Model code: SF-SLIDINGDOORSTE-090
• Capacity: 2000 L
• Category: Sliding door steam sterilizer
• Brand: Sterifag
• Lead time: 30-60 days
• Warranty: 1 year standard
