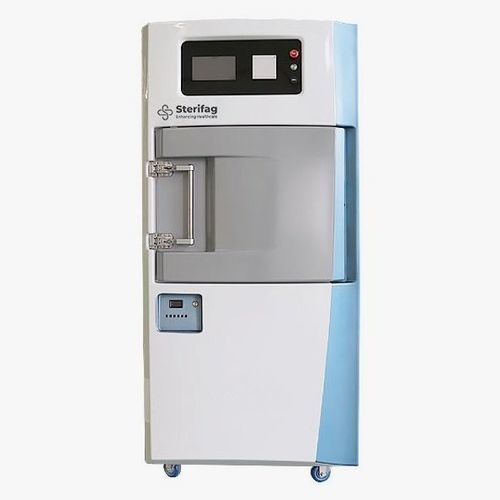

Sterilization service sterilizer SF-ETHYLENEOXIDES-033

CSSDfor central sterilization supply unitsethylene oxide

Description
Sterifag ethylene oxide sterilizers are manufactured to CE, ISO and GMP standards for low-temperature sterilization of heat-sensitive medical devices such as surgical instruments, implants, textiles, endoscopes, plastics and glassware. The units include remote service access for software updates and cycle adjustments without an on-site technician. Designed for efficient energy and water use, they provide automatic control with a regulated aeration phase (4–6 hours) to remove residual ethylene oxide from sterilized loads.

Features

• Available volumes: 120 and 220 litres.
• Sterilization temperature: 55 °C.
• Sterilization pressure: 50 kPa.
• Automatic control system with multi-level user access and passwords.
• Low power consumption for cost-effective operation.
• 7/10 inch multi-colour touch screen process controller; graphical process display.
• Confirmation screen at program start; cycle interlocks prevent start if door not locked.
• Door remains locked until temperature decreases to safe unlock conditions.
• Data archiving to USB and output via built-in printer.
• Remote service access for updates and cycle changes.
• Available in single- and double-door versions; two shelves for optimized space utilization.

Packaging

• Transport trolley(s).

Warranty

• One year standard warranty.

Technical specifications

• Model code: SF-ETHYLENEOXIDES-033
• Capacity: 120 Litre
• Category: ETO Sterilizer
• Brand: Sterifag
• Lead time: 30-60 days
• Warranty: 1 year standard
• Sterilization temperature: 55 °C
• Sterilization pressure: 50 kPa
• Volumes available: 120 & 220 litres
• Automatic control system
• Low power consumption
• 7/10 inch multi-colour touch screen & process controller
• Display includes schemes and graphics
• Confirmation screen at program start
• Data archiving to USB
• Output via built-in printer
• Multi-level user passwords
• Single and double door versions available
• Two shelves for space utilization
• Safety interlocks: cycle will not start unless door locked; door remains locked until cooled
• Aeration time after sterilization: 4-6 hours
