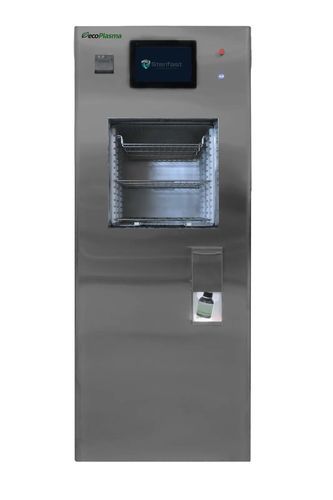

ENT sterilizer EcoPlasma E110

surgeryophthalmologycardiology

Product summary
Low-temperature plasma sterilizer designed for hospital central sterilization departments and clinical environments. Provides H₂O₂-based plasma cycles for heat- and moisture-sensitive instruments with chamber options adapted to workflow (useful volumes from 44 L to 158 L; E110 useful volume 107 L). Chamber in non-corrosive aluminum, removable internal cover, dual-shelf loading and mechanical clamp components. Automated sterilant refilling with RFID bottle recognition and sealed drawer transfer reduces operator chemical contact.

Key features

• 01 Fully automatic single or double-door configurations in durable aluminum with advanced interlock safety logic
• 02 Intelligent Sliding Door Control (I_SD_C): prevents door operation during active/failed/interrupted cycles; 10-minute closing countdown; acoustic alerts; anti-pinch reversal; energy-saving logic
• 03 Pedal-activated sliding door for hands-free loading/unloading
• 04 Cycle types: Advanced (hollow loads), Normal (non-hollow loads), Endoscope (flexible and rigid), Free (custom)
• 05 Test cycles: Test I (penetration), Test II (leakage), Test III (leakage and penetration)
• 06 Efficient penetration in long lumens (up to 10 m extension at 1 mm diameter both ends open; 3 m extension at 1 mm diameter one end open)
• 07 Routine control with H₂O₂ biological and chemical indicators; compatible with Lumen Kit process challenge device
• 08 Automated sterilant refilling: no operator contact; tank preserves solution properties; drawer with bottle holder; automatic perforation; RFID recognition
• 09 Recharge bottles supplied in sealed plastic bags (leak verification); 18-month shelf life; packaging: boxes of 4
• 10 Sterilant low H₂O₂ concentration allows air transport (Sterifast Known Consignor of Air Cargo No. PT/KC/01-00006)
• 11 7" touchscreen HMI (one or two); Windows OS; Ethernet communication; Phoenix automation/control board
• 12 Cycle data printout: phases, phase times, total time, pressure, temperature, H₂O₂ concentration; remaining time; "Plasma OK" status; real-time graphs; cycle archive with date search
• 13 USB connection; data export to CSSD traceability systems via network or USB (STV files)
• 14 Sterifast VIEWER PC software: link graphic cycles to load/department/operator; save PDF; monitor temperature/pressure; customizable desktop
• 15 Supervision software for technicians; remote software option available to distributors under agreement
• 16 Display/printout in selectable languages (EN, PT, ES, DE, FR, IT, IND, PL); translatable to local languages
• 17 Differentiated acoustic signals (intermittent = correct cycle; continuous = failed cycle)
• 18 Automatic preheating of the load and automatic chamber heating with energy-saving logic
• 19 Double-stage high vacuum pump with oil condenser/separator, automatic pre-heating, high-efficiency condenser and large-capacity molecular sieve
• 20 High-voltage plasma generator located outside the chamber with temperature sensor (no radiation damage to materials)
• 21 Safety systems: cycle-start condition checks; overheating/probe-failure detection; maximum temperature limits (chamber, vaporizer, each door); independent element temperature control; HEPA 0.2 μm; safe residues <1 ppm; no hazardous electromagnetic radiation
• 22 Easy installation: electrical connection only (no water, compressed air, drain or special ventilation required); mobile on four wheels
• 23 Validation available on request according to ISO 14937
• 24 Suitable for: surgical instruments, flexible endoscopes, laparoscopy trays, ophthalmology/cardiology/MIS/neurosurgery/ENT devices, electrosurgical instruments, cables, optical fibers, thermo-sensitive materials (max. 60°C) and items normally sterilized at 121°C
• 25 Compatible packaging: polypropylene or polyethylene sterilization pouches, reels and sheets
• 26 Patented vaporization system (WO 008755/2009 A1; PCT/PT000029/2007) and patented sterilant refilling process (PCT/PT2013/000025 - WO 2014/178740 A1)

Technical comparison (specification per configuration)
Specification — E50 1SD · E50 2SD · E110 1SD · E110 2SD · E160 2SD
Automatic sliding doors — 1 · 2 · 1 · 2 · 2
Useful volume — 44 L · 44 L · 107 L · 107 L · 158 L
Total volume — 47 L · 47 L · 109 L · 109 L · 162 L
Chamber dimensions (WxHxD) — 420 x 180 x 620 mm · 420 x 420 x 620 mm · 420 x 420 x 620 mm · 420 x 420 x 620 mm · 420 x 920 x 700 mm
Sterilizer external dimensions (WxHxD) — 700 x 1700 x 790 mm · 700 x 1700 x 840 mm · 700 x 1800 x 790 mm · 700 x 1800 x 840 mm · 700 x 1800 x 1140 mm
Weight — 200 kg · 210 kg · 260 kg · 270 kg · 310 kg
Voltage — 230V/380V + N + Earth · 230V/380V + N + Earth · 230V/380V + N + Earth · 230V/380V + N + Earth · 230V/380V + N + Earth
Frequency — 50/60 Hz · 50/60 Hz · 50/60 Hz · 50/60 Hz · 50/60 Hz
Power — 2.9 kW · 2.9 kW · 3.3 kW · 3.3 kW · 3.7 kW

Technical specifications

• Manufacturer: Sterifast
• Product category: Plasma sterilizers
• Model family examples: E50 (1SD/2SD), E110 (1SD/2SD), E160 (2SD)
• Chamber material: non-corrosive aluminum
• Chamber capacities: nominally ~50 L to 160 L (useful volumes: 44 L, 107 L, 158 L)
• Doors: automatic sliding, single or double-door with advanced interlock and safety logic
• Control: 7" touchscreen HMI (one or two), Windows OS, Ethernet, Phoenix automation board; USB and network data export (STV)
• Traceability: cycle printout and archive; Sterifast VIEWER PC software for associating cycles to load/department/operator
• Sterilant handling: automated refilling, RFID bottle recognition, automatic perforation, sealed drawer; bottles supplied in sealed bags
• Safety features: HEPA 0.2 μm, overheating/probe failure detection, maximum temperature limits, independent element control, residue level <1 ppm
• Vacuum system: double-stage high vacuum pump with oil condenser/separator and molecular sieve
• Plasma generator: high-voltage unit outside chamber with temperature sensor (no material radiation damage)
• Installation: electrical connection only (no water, compressed air, drain or special ventilation required); mobile on wheels
• Validation: ISO 14937 validation available on request
• Suitable for: surgical instruments, flexible endoscopes, delicate/thermo-sensitive materials (max. 60°C) and items normally sterilized at 121°C
• Patents: vaporization system and sterilant refilling process as stated
