Injection cannula Steriflonvascular accessdisposable
Add to favorites
Compare this product
Characteristics
- Medical procedure
- injection, vascular access
- Options
- disposable
- Length (mm)
19 mm, 25 mm, 32 mm, 45 mm
(0.7 in, 1 in, 1.3 in, 1.8 in)- External diameter (mm)
4.7 mm, 5.3 mm, 6 mm, 6.7 mm, 7.3 mm, 8 mm
(0.2 in, 0.2 in, 0.2 in, 0.3 in, 0.3 in, 0.3 in)
Description
Product
Overview / Specifications
Packaging
Packing details
Gross: 6.7 kg
Carton dimensions: 698 x 320 x 178 mm
Sizes
Technical characteristics
- I.V. cannula with injection port
- Model: SMD 1100
Overview / Specifications
- Used for intravenous infusion of medicinal fluids
- Made from medical-grade PTFE (non-toxic)
- Formulated cannula tip and smooth surface for atraumatic catheterization
- Super sharp needle with two cutting edges
- Provided with injection port with non-return valve for additional medication
Packaging
- Sterile, individually packed in peelable blister pack
- Box of 100 pcs.; Master carton of 1000 pcs.
Packing details
Gross: 6.7 kg
Carton dimensions: 698 x 320 x 178 mm
Sizes

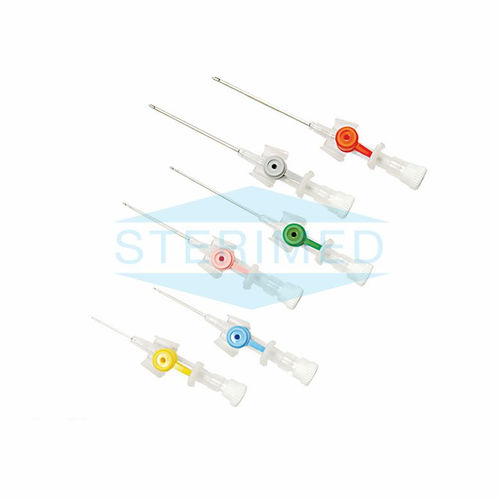

- Size in FG: 14, 16, 18, 20, 22, 24
- Colour code: Orange, Grey, Green, Pink, Blue, Yellow
- Length: 45 mm (14/16/18 FG); 32 mm (20 FG); 25 mm (22 FG); 19 mm (24 FG)
Technical characteristics
- Product name: Steriflon
- Commercial designation / model: SMD 1100
- Indication: Intravenous infusion of medicinal fluids; allows additional medication via injection port
- Material: Medical grade PTFE (non-toxic)
- Cannula design: Formulated tip and smooth surface for atraumatic catheterization
- Needle: Super sharp with two cutting edges
- Injection port: Included, with non-return valve
- Sterility: Sterile, individually packed in peelable blister pack
- Packaging quantities: Box of 100 pcs.; Master carton of 1000 pcs
- Gross weight (master carton): 6.7 kg
- Master carton dimensions: 698 x 320 x 178 mm
- Available sizes (FG): 14, 16, 18, 20, 22, 24
- Corresponding colour codes: 14 - Orange; 16 - Grey; 18 - Green; 20 - Pink; 22 - Blue; 24 - Yellow
- Corresponding catheter lengths: 14/16/18 FG = 45 mm; 20 FG = 32 mm; 22 FG = 25 mm; 24 FG = 19 mm
