multi-parameter ECG monitor / RESP / TEMP / EtCO2
Macs 30

{{requestButtons}}

Characteristics

  • Measured parameter:

    ECG, RESP, TEMP, EtCO2, NIBP, IBP, SpO2

  • Applications:

    intensive care

  • Configuration:

    compact

  • Screen size:

    15 in

Description

multi parameter patient monitor

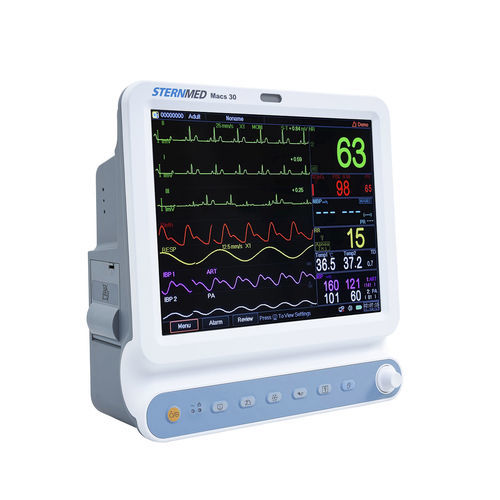

Masc 30 is a multi parameter monitor offers a variety of applications. It can be used to measure and monitor parameters of SpO2, NIBP, Pulse, TEMP, ECG and RESP. Optional mainstream, sidestream EtCO2 and 1 or 2-Channel IBP monitoring functions are also available.


15” display TFT Color LCD
Standard Configuration ECG, HR, RESP, NIBP, SpO2, PR, TEMP
ECG sweeping speed 12.5mm/s, 25mm/s, 50mm/s
ECG auto gain control
Heart rate range 20-250bpm
Spo2 display SpO2 value & waveform pulse rate & histogram
Measurement Range of Pulse Rate 30-240 bpm
RESP Measurement Method Thoracic Impedance
RESP Measurement Range 0-100 bpm
TEMP Range 28.0-45.0°C
NIBP Measurement is Intelligent Oscillometric method
NIBP Unit Display 0-300 mmHg
Inflation Time <10s (typical adult cuff)
Deflation Time <2s (typical adult cuff)
Alarm setting customized upper & lower limits & auto saved
Rechargeable lead-acid battery
