surgery table

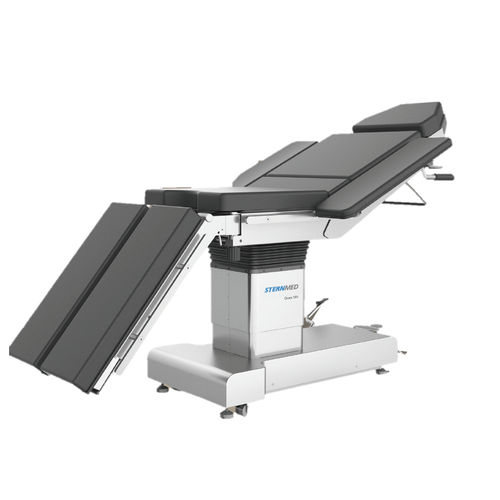

Onex 101 is a manual surgical table that has a load capacity of 200 kg. It can be easily set up and positioned to meet all kinds of surgical operation needs.
Features
Stable hydraulic drive and pneumatic assisted system
Realizing all kinds of surgical positioning required clinically, with simple manual control.
Integrated kidney elevator 0~120mm height adjustment.
High mobility with front-ended release and brake control.
High-quality hydraulic system is adopted, which can realize required positioning, like tilting and lifting.
Four-stand base of great stability.
Specifications
Table Length 2140mm
Table Width 500mm (not including side rails)
Table Height 1040mm/690mm
Trendelenburg/Reverse 20°/15°
Lateral Tilt (left/right) 20°/20°
Head Plate (up/down) 30°/90°
Back Plate (up/down) 75°/20°
Leg Plate (down/split) 90°/90° x 2
Flex/Reflex 192°/105°
Operation load max. 200KG
