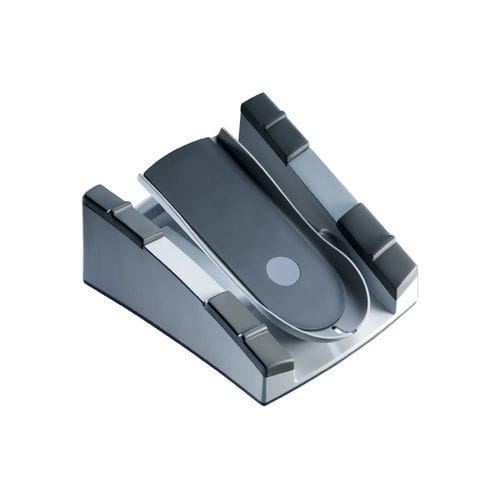

Surgery unit footswitch MFS Phaco-MED

electricsingle

Pedal with proportional output signal (both vertical and horizontal) 4 rocker switches with 2 switching functions each Programmable braking point for tactile feedback Intuitive and extremely precise operation Wireless signal transmission via steute wireless SW2.4LE-MED (optional) Technical data Applied standards IEC 60601-1; ANSI/AAMI ES60601-1; IEC 60529 Enclosure shock-proof thermoplastic Rocker switch robust, operating theatre approved silicone Switching system rocker switch: 8 switching functions pedal: with proportional output signal, horizontal: -10°... 0 ... 10° +/- 2°, vertical: 0 ... 15° +/- 1° Mechanical life rocker switch: > 250 000 operations pedal: > 1 million operations Degree of protection IP X8 to IEC/EN 60529 Connection 2 m cable, other lengths optionally available Switching voltage max. 25 VAC / 60 VDC Switch-on current max. 1 A Switching capacity max. 20 VA
