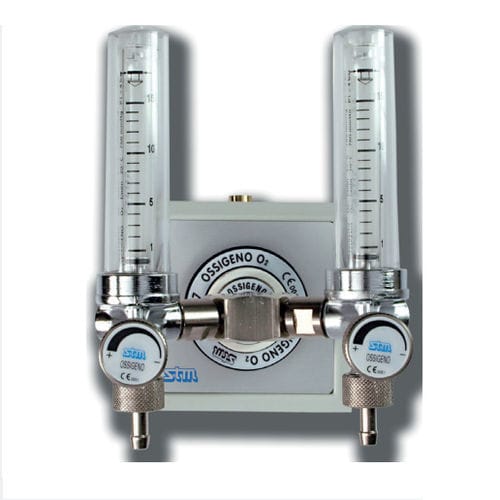

Variable-area flow meter FLUX - 0032doubleoxygenair
Add to favorites
Compare this product
Characteristics
- Type
- variable-area, double
- Fluid type
- oxygen, air
- Applications
- for hospitals
- Connection type
- plug-in type
- Output
Min.: 1 l/min
(0.2642 us gal/min)Max.: 30 l/min
(7.9252 us gal/min)- Weight
640 g
(23 oz)
Description
FLOWMETER, double type, with downstream flow regulation, available for Oxygen and Medical Air.
It is constituted by:
“Y shaped” connector with probe for the connection to the terminal unit (standards available AFNOR, DIN, BS and UNI).
Flowmeters each one composed by:
Nickel- plated body with 9/16 tube-holder nipple
Nickel-plated brass tap
Graduated tube, scale 1 to 15 lt/mnt with a metal floater
for a precise flow lecture
Nickel-plated brass tube-holder nipple
