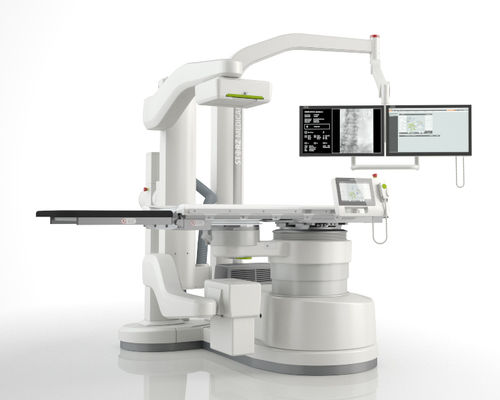

The new MODULITH® SLX-F2 »FD21« combines modern, innovative and efficient X-ray imaging with the proven STORZ MEDICAL electromagnetic shock wave source. The 21 cm x 21 cm X-ray flat-panel detector enables excellent imaging and rapid positioning of the stone in the effective therapy focus, along with reliable in-situ monitoring during the treatment.
Dynamic X-ray flat-panel detector
24-inch viewing monitor
Flexible monitor support arm
Isocentric X-ray localization
In-line X-ray/ultrasound localization
Electromagnetic shock wave source
High fragmentation efficiency
Central system control
Device carrier (optional)
Thanks to the cylindrical design of the STORZ MEDICAL therapy coil, the stone can always be imaged in situ on the central therapy head axis – even during shock wave treatment – regardless of whether a standard AP fluoroscopic projection or ultrasound localization is performed.
The MODULITH® SLX-F2 »FD21« offers a dual focus, allowing selection of shock wave parameters best suited to the patient’s specific indication and a personalized treatment strategy.
All integrated system components are controlled from a touch screen, either from a remote control panel behind lead-glass windows or directly in the treatment room. The optional automated LithoPos stone positioning system is also integrated into the StorM-Touch platform.
The StorM-Base patient database integrates seamlessly with the StorM-Touch platform and offers an ideal interface for retrieving and importing all patient and treatment data.
