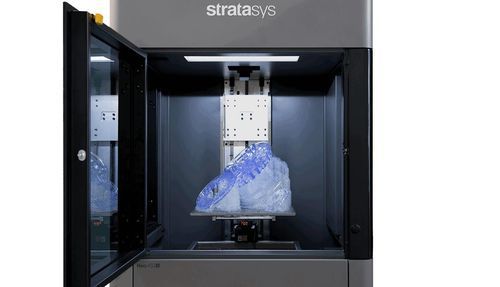

Research and development 3D printer Neo® series

vat photopolymerizationSLAhigh-speed

Overview
Engineered for engineers. The NEO® series stereolithography (SLA) 3D printers deliver parts with excellent surface finish, dimensional accuracy and fine detail, using an open resin system compatible with 355 nm commercial resins.

Key benefits

• Reduce post-processing time by up to 50%.
• Open resin system (compatible with commercial 355 nm resins).
• Proven reliability and quality assurance for continuous production use.

Detailed advantages

• Dimensional accuracy with exceptional sidewall quality and high-detail resolution, enabling significant reductions in finishing time.
• Material freedom via an open resin system that accepts any 355 nm resin on the market.
• Robust, serviceable hardware design using industry-grade components for reliable 24/7 operation.
• Documented continuous operation in demanding environments (e.g., motorsport teams, service bureaus, industrial manufacturers).

Technical features

• Technology: Next-generation stereolithography (SLA).
• Resin system: open (compatible with commercial 355 nm resins).
• High-power laser with dynamic, variable beam-size control for improved precision and speed.
• Titanium software features (traceability, reporting, intuitive UI) and GrabCAD Print support for build preparation.

Compatible / recommended materials

• Somos® WaterShed XC+; WaterShed XC 11122; WaterShed AF; WaterShed Black.
• Somos® PerFORM (for rigid, heat-resistant composite-like parts).
• Somos® Evolve (designed to simplify post-processing and mimic thermoplastic look and performance).

Typical applications

• Rapid prototyping: concept models, communication models, functional fit-and-form parts.
• Jigs and fixtures: large-format tooling and verification models.
• Investment casting patterns: tools and molds for low-volume production.
• Composite tooling: 3D-printed tools for small-run production of final parts.

Comparison — example models
Neo800+ 3D printer — Build platform: 31.5 × 31.5 × 23.6 in. (800 × 800 × 600 mm) · Beam size / focus: 120 to 750 μm (Dynamic and Variable) · Build modes: HD and SD · Brochure: https://www.stratasys.com/siteassets/3d-printers/printer-catalog/neo-series/pss_sl_neo800_0625a.pdf?v=49bda5
Neo800 3D printer — Build platform: 31.5 × 31.5 × 23.6 in. (800 × 800 × 600 mm) · Beam size / focus: 150 to 600 μm (Dynamic and Variable) · Build modes: HD and SD · Brochure: https://www.stratasys.com/siteassets/3d-printers/printer-catalog/neo-series/pss_sl_neo800_0625a.pdf?v=49bda5
Neo450s 3D printer — Build platform: 17.72 × 17.72 × 15.75 in. (450 × 450 × 400 mm) · Beam size / focus: 80 to 750 μm (Dynamic and Variable) · Build modes: HD and SD · Brochure: https://www.stratasys.com/siteassets/3d-printers/printer-catalog/stereolitography/neo-series-printers/pss_sl_neo450-series_0124a.pdf?v=498c8e

Accessories and post-processing

• Neo® Unload Trolley — assists safe platform unloading and collects parts up to 40 kg; integrated drip tray. · Brochure: https://www.stratasys.com/siteassets/3d-printers/printer-catalog/neo-series/redesign-2023/pss_sl_neo-unload-trolley_a4_0821a.pdf?v=4a90e2
• Neo® UV800 — post-cure station with high-intensity UV lamps and rotating tray; heated resin storage for VAT temperature control. · Brochure: https://www.stratasys.com/siteassets/3d-printers/printer-catalog/neo-series/redesign-2023/pss_sl_uv800_0821a.pdf?v=4a7d54

Specifications — summary

• Commercial name: NEO® (SLA stereolithography).
• Resin system: open, compatible with 355 nm commercial resins.
• Software: Titanium™ (traceability, reporting, diagnostics), GrabCAD Print™.
• Representative build volumes: Neo800 / Neo800+ (800 × 800 × 600 mm); Neo450s (450 × 450 × 400 mm).
• Beam focus range: typically 80 μm to 750 μm (model-dependent, dynamic/variable beam).
• Build modes: HD and SD.
• Post-processing: compatible with UV800 post-cure station.
• Available accessories: Neo® Unload Trolley and other workflow accessories listed in product documentation.
