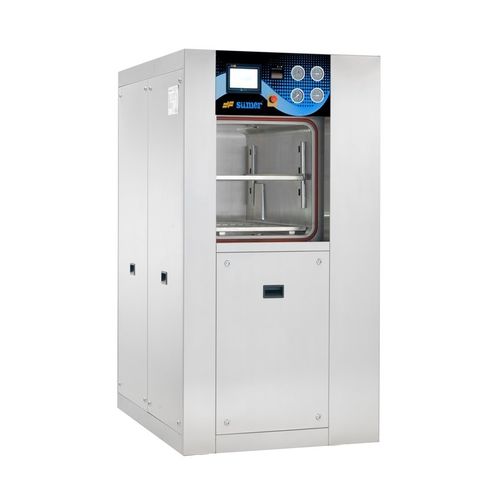

Medical sterilizer SM-2 KK 760
laboratoryCSSDsteam

medical sterilizer
medical sterilizer
Add to favorites
Compare this product


Characteristics

Applications
medical, laboratory, CSSD
Sterilization procedure
steam
Configuration
floor-standing, front-loading, pass-through
Function
automatic, programmable, high-capacity, microprocessor-controlled, with vacuum cycle
Sterilization chamber material
stainless steel
Options
with touchscreen, with sliding door, with dryer, with steam generator, with cooling system, with deionizer
Capacity

760 l
(200.77 gal)

Temperature range

134 °C
(273.2 °F)

Sterilization cycle time

60 min

Width

1,120 mm
(44 in)

Height

2,010 mm
(79.1 in)

Depth

2,200 mm
(87 in)

Description

Control System PLC processor Way of use Full automatic / buttons and touch screen Screen Type Color TFT, Touch LCD Screen Dimensions 7,0" (10,0" Optional) Keypad Touch Screen Printer 40 Characters / lines, integrated thermal printer Communication RS232 /485 Port - USB (Ethernet Optional) Warning system Warnings with audiovisual and written messages Data Storage 200 cycles Procedure follow-up/tracing Analog indicators for the follow-up of Cell, Jacket, Generator and Air pressure in addition to the Touch Screen TAKING OVER Taking over the materials requiring sterilization WASHING Packaging the washed materials PACKAGINC Packaging the washed materials STERILIZATION Sterilization of packaged materials STORAGE Storage of sterilized materials till use HANDINC OVER Dispatching the stérile materials to relevant locations DELIVERY Delivery of materials with broken sterility to the CSU

VIDEO
