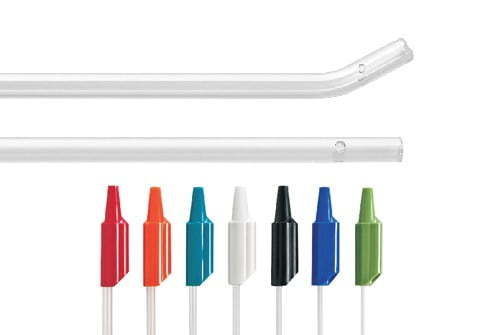

Respiratory suction catheter

bronchialatraumatic tipPVC

Product description

• Made of medical-grade PVC
• “Frosted” external surface for improved handling
• Color-coded connectors corresponding to standard catheter sizing
• Tip design: two opposite side holes and a central opening with rounded edges for controlled drainage
• Phthalate-free in scaled (graduated) versions
• Latex-free
• Sterile; single-use (disposable)

Available variants (type | size [CH/FG] | color | length [mm] | catalog no.)
straight | 6 | green | 400 | 71-0600
straight | 8 | blue | 400 | 71-0800
straight | 10 | black | 550 | 71-1000
straight | 12 | white | 550 | 71-1200
straight | 14 | green | 550 | 71-1400
straight | 16 | orange | 550 | 71-1600
straight | 18 | red | 550 | 71-1800
straight graduated | 4 | red | 400 | 71-0420
straight graduated | 5 | white | 400 | 71-0520
straight graduated | 6 | green | 400 | 71-0620
straight graduated | 8 | blue | 400 | 71-0820
straight graduated | 10 | black | 600 | 71-1020
straight graduated | 12 | white | 600 | 71-1220
straight graduated | 14 | green | 600 | 71-1420
straight graduated | 16 | orange | 600 | 71-1620
straight graduated | 18 | red | 600 | 71-1820


Technical specifications

• Material: medical-grade PVC
• Surface: frosted external surface
• Connector: color-coded connectors (colors correspond to standard catheter sizing)
• Tip / drainage: two opposite side holes and a central opening with rounded edges for controlled suction
• Biocompatibility: phthalate-free (in scaled/graduated versions); latex-free
• Sterilization & usage: sterile; single-use (disposable)
• Available types: straight and straight graduated (with graduations)
• Available sizes (CH/FG): 4, 5, 6, 8, 10, 12, 14, 16, 18
• Available lengths (mm): 400, 550, 600 depending on size and type
• Catalog numbers: provided per size/type in the variants list above
