Suction cannula 78-2220

Yankauerstraightcurved

Product overview

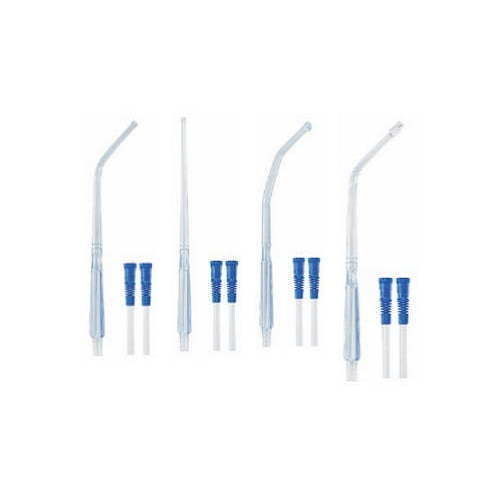

Set C: Yankauer surgical suction handle with connecting tubing and anti-kink connector. Tubing is trimmable to required length.

Available variants (table)
Suction drain | Type | Yankauer standard angled | Yankauer standard straight | Yankauer bulb tip angled | Yankauer sump angled
25 CH/ 2100 mm | without suction control | 78-2220 | 78-2222 | 78-1220 | 78-0220
25 CH/ 2100 mm | with suction control | 78-2221 | 78-2223 | 78-1221 | 78-0221
25 CH/ 3000 mm | without suction control | 78-2320 | 78-2322 | 78-1320 | 78-0320
25 CH/ 3000 mm | with suction control | 78-2321 | 78-2323 | 78-1321 | 78-0321
30 CH/ 2100 mm | without suction control | 78-2230 | 78-2232 | 78-1230 | 78-0230
30 CH/ 2100 mm | with suction control | 78-2231 | 78-2233 | 78-1231 | 78-0231
30 CH/ 3000 mm | without suction control | 78-2330 | 78-2332 | 78-1330 | 78-0330
30 CH/ 3000 mm | with suction control | 78-2331 | 78-2333 | 78-1331 | 78-0331

Notes
Set includes tubing and anti-kink connector; tubing can be trimmed to length as required.

Characteristics / Technical specifications

• Type: Yankauer surgical suction tip set with connecting tube
• Configuration: C – set with tubing and anti-kink connector, trimmable
• Available sizes: 25 CH and 30 CH
• Available tubing lengths: 2100 mm and 3000 mm
• Options: with or without suction control (finger‑tip control)
• Tip designs: standard angled, standard straight, bulb tip angled, sump angled
• Reference codes: see variant table for specific product codes (examples include 78-2220, 78-2321, 78-2331)
