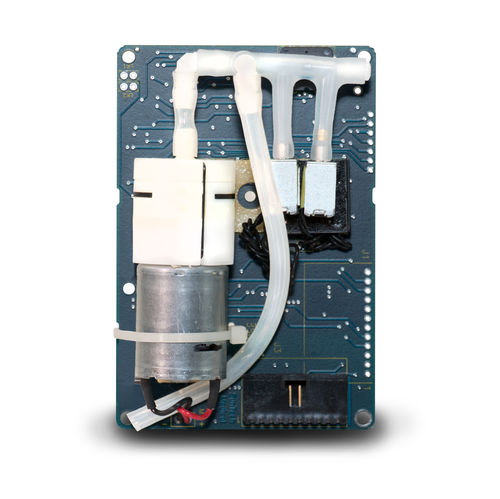

NIBP module for multi-parameter monitor Advantage HT

pulse rateclinicalintegrated

The practice of medicine is extending beyond the hospital and other acute care settings to the home where preventive care is practiced in tandem by clinicians and patients. Blood pressure monitoring in home telemedicine applications needs to be as safe, reliable, accurate, and trusted as hospital patient monitors. SunTech® Advantage™ HT offers proven performance trusted in hospitals at an exceptional value appropriate for the home healthcare setting. Technical Specifications Physical Dimensions Width 2.73 in [69.3 mm] Length 4.15 in [105.4 mm] Height 1.49 in [37.8 mm] Weight 0.3 lbs [133 g] Measurement Technique Oscillometric NIBP Accuracy Meets ANSI/AAMI SP10, EN 1060-4, ISO 81060-2 Systolic Range Adult: 40-260 mmHg Pediatric: 40-160 mmHg Neonatal: 40-130 mmHg Diastolic Range Adult: 20-200 mmHg Pediatric: 20-120 mmHg Neonatal: 20-100 mmHg Pulse Rate Range 40-220 BPM (Beats per min) Pulse Rate Accuracy ±2% or ±3 BPM, whichever is greater Transducer Accuracy ± 3 mmHg over full range in operating conditions Operating Modes Manual Operating Conditions 0˚C to 50˚C, 15% to 95%, non-condensing humidity Storage Conditions -20˚C to +65˚C, up to 95% RH non-condensing Electrical Operating Voltage 5.3-14.5 VDC Power Consumption Using 6 VDC Nominal Sleep: 1.4 mW Idle: 204 mW Measurement: 1.1 W Inflation: 3.8 W Communication Protocols Serial RS232 or TTL (5V) Safety & Regulatory Standards IEC 60601-1, IEC 80601-2-30, ISO 81060-2, AAMI SP10, EN1060-1, EN1060-3, EN1060-4
