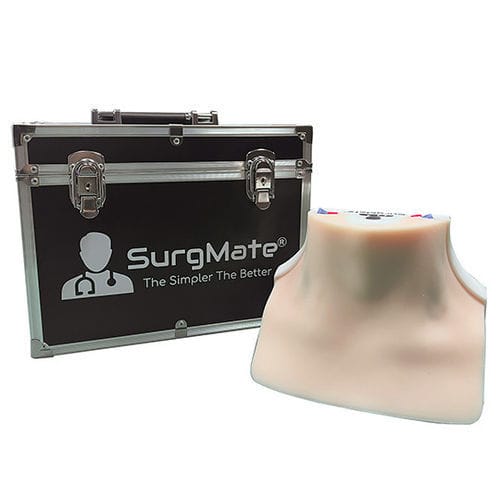

Ultrasound imaging test phantom THY-B01A

neckthyroid

Overview
Training platform for ultrasound-guided biopsy and ablation on modular thyroid models. Supports practice of multiple ablation modalities with embedded temperature sensing and an audible alarm for the danger triangle near the recurrent laryngeal nerve. Portable case and replaceable pads enable repeatable, cost-effective procedural training.

Procedures

• Thyroid nodule radiofrequency ablation (RFA)
• Thyroid nodule microwave ablation (MWA)
• Thyroid nodule laser ablation
• Thyroid nodule cryoablation
• Thyroid nodule ethanol ablation (PEI)
• Thyroid nodule core needle biopsy (CNB)
• Thyroid nodule fine needle aspiration (FNA)

Features

• Ultrasound-visible anatomy and ablation effects
  • Thyroid gland
  • Thyroid nodules
  • Trachea
  • Vessels around the danger triangle (carotid arteries and jugular veins)
  • Hyper-echogenic cloud from ablation
• Replaceable nodules: outer diameter (OD) 2.0 cm and 3.2 cm
• Embedded temperature sensors monitor area near recurrent laryngeal nerve and trigger alarm on overheating/overcooling
• Neck muscle pad puncture durability: up to 50 punctures
• Modular pads for targeted scenario training and cost control
• Portable platform with included transport case

Models / Included Items

• Model: THY-B01A
• Applicable procedures: RFA, MWA, laser ablation, cryoablation, PEI, CNB, FNA
• Includes: portable case, trachea base, neck muscle pad (THY-S06), thyroid ablation pad (THY-S01), temperature indicator, temperature sensor connector, power supply, universal connector, speaker

Spare Parts / Pads

• Thyroid pad with two 2 cm OD nodules for MWA, RFA, laser ablation and cryoablation (THY-S01)
• Thyroid pad with 2 cm and enlarged 3.2 cm OD nodules for MWA, RFA, laser ablation and cryoablation (THY-S01A)
• Thyroid pad with two 2 cm OD nodules for ethanol ablation (PEI) (THY-S08)
• Thyroid pad with two 2 cm OD nodules for CNB (THY-S02)
• Thyroid pad with two 2 cm OD cysts for FNA (THY-S03)
• Neck muscle pad (applicable to THY-B01A) (THY-S06)
• Neck muscle pad for enlarged thyroid pad (applicable to THY-B01A) (THY-S07)

Specification (net / gross)
Net Dimensions (L×W×H): 20.5 cm × 15.5 cm × 11 cm
Net Weight: 2.5 kg
Gross Dimensions (L×W×H): 31 cm × 24 cm × 25.5 cm
Gross Weight: 4 kg

Technical specifications

• Supported procedures: RFA, MWA, laser ablation, cryoablation, PEI (ethanol ablation), CNB, FNA
• Nodule sizes: 2.0 cm OD and 3.2 cm OD
• Embedded temperature sensors with alarm for danger zone (recurrent laryngeal nerve area)
• Ultrasound-visible anatomy: thyroid gland, nodules, trachea, surrounding vessels (carotid arteries, jugular veins), hyper-echogenic ablation cloud
• Neck muscle pad puncture durability: up to 50 punctures
• Modular spare pads: THY-S01, THY-S01A, THY-S02, THY-S03, THY-S06, THY-S07, THY-S08
• Portable case included
• Net Dimensions: 20.5 × 15.5 × 11 cm; Net weight: 2.5 kg
• Gross Dimensions: 31 × 24 × 25.5 cm; Gross weight: 4 kg
