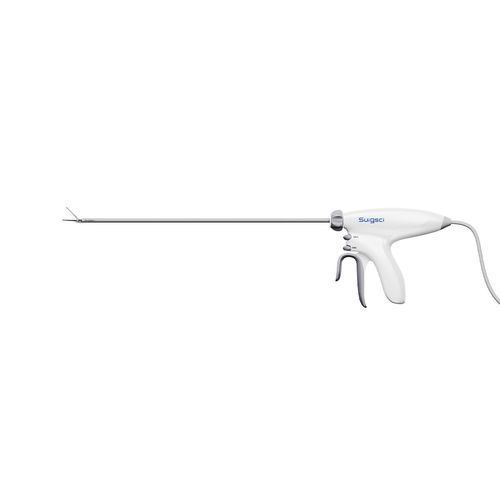

Dissection shears HU07 series

cuttingfor humansdisposable

Product overview
Surgsci Integrated Ultrasonic Shears combine the ultrasonic blade and transducer in a single pre-assembled instrument for tissue dissection, cutting, coagulation and vessel sealing up to 7 mm. The curved, tapered tip and slender jaw are designed to facilitate access to tissue planes and enable precise tissue handling. A built-in single-use transducer simplifies preparation and removes transducer reprocessing requirements. Four shaft lengths accommodate different surgical access needs.

Product advantages

• Integrated design for simplified setup: pre-assembled blade and transducer remove separate component assembly.
• Single-use transducer: built-in disposable transducer eliminates cleaning and sterilization steps linked to reusable transducers.
• Precise access to tissue planes: curved, tapered tip and slender jaw support controlled dissection and handling.
• Versatile tissue management: combines cutting, coagulation and vessel sealing up to 7 mm in one instrument; extended ultrasonic blade accommodates tissue bundles during grasping and transection.
• Optimized temperature control: energy-control algorithms limit blade temperature during activation to reduce risk of thermal injury.
• Reduced mist formation: algorithmic and structural optimizations help minimize mist for a clearer surgical field.
• Multiple length options: available in 140 mm, 230 mm, 360 mm and 450 mm with a consistent 5.5 mm shaft diameter.

Models
Model A | Model B | Length
HU07SSCA | HU07SSCB | 140 mm
HU07MSCA | HU07MSCB | 230 mm
HU07LSCA | HU07LSCB | 360 mm
HU07XSCA | HU07XSCB | 450 mm

Service (summary)
Order processing: product specifications, quantities, payment terms and estimated lead time are confirmed prior to processing. After-sales support: technical assistance and product quality support provided; warranty coverage and replacement arrangements follow agreed sales terms. Payment and shipping: payment methods, schedules and shipping arrangements are confirmed in sales documentation and arranged according to destination and order requirements.

Specifications

• Function: tissue dissection, cutting, coagulation and vessel sealing up to 7 mm
• Integrated design: ultrasonic blade and transducer pre-assembled in a single instrument
• Transducer: single-use / disposable (built-in)
• Tip / jaw: curved, tapered tip with slender jaw for precise tissue access and handling
• Shaft lengths available: 140 mm, 230 mm, 360 mm, 450 mm
• Shaft diameter: 5.5 mm (consistent across lengths)
• Temperature control: energy-control algorithms to limit blade temperature and reduce thermal injury risk
• Mist reduction: algorithmic and structural optimizations to reduce mist formation
• Vessel sealing capability: up to 7 mm vessels
• Model series / references: HU07SSCA, HU07SSCB, HU07MSCA, HU07MSCB, HU07LSCA, HU07LSCB, HU07XSCA, HU07XSCB
