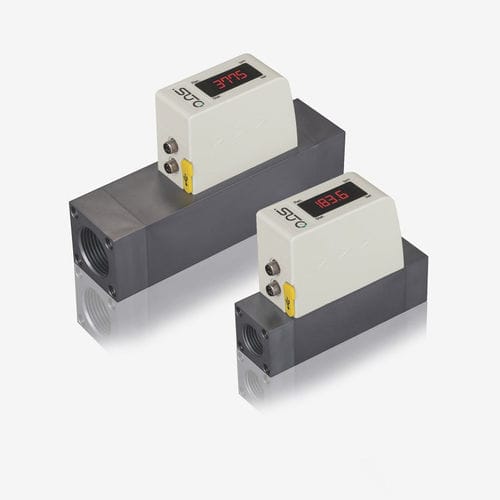

Mass flow meter S418-V
thermalairintegrated

mass flow meter
mass flow meter
mass flow meter
Add to favorites
Compare this product


Characteristics

Other characteristics
mass, thermal
Fluid type
air
Connection type
integrated
Options and accessories
with digital display
Output

Max.: 7,000 l/min (1,849 us gal/min)

Min.: 56 l/min (15 us gal/min)

Pressure

Max.: 1.6 bar (23.2 psi)

Min.: 0 bar (0 psi)

Weight

Max.: 1 kg (2 lb)

Min.: 0 kg (0 lb)

Height

Max.: 106 mm (4 in)

Min.: 93 mm (4 in)

Width

Max.: 48 mm (2 in)

Min.: 35 mm (1 in)

Depth

Max.: 178 mm (7 in)

Min.: 120 mm (5 in)

Description

S418-V is designed to monitor performance vacuum pumps. This inline flow meter measures the actual flow and absolute pressure on the low pressure side of vacuum pumps. Convenient installation, great flexibility, and can be installed anywhere Inline thermal mass flow sensor virtually independent of pressureand temperature changes Very short response time Particularly suitable for measuring at the point-of-use at the lowpressure side of vacuum pumps Available as DN8, DN15, DN20, DN25 and DN32 (G female thread) Measures actual flow and absolute pressure Integrated display showing actual volumetric flow and absolutepressure Options for output signals: 4 … 20 mA ,Modbus, M-Bus Bluetooth interface for remote sensor settings Configurable through Android devices Embedded data logger capable of recording 5-millionmeasurement samples Inline thermal mass flow sensor virtually independent of pressure and temperature changes. • Process connection of G-type thread with DN8, DN15, DN20 and DN25 available • Very short response time. • Particularly suitable for measuring at the point-of-use at the low pressure side of vacuum pumps. • Integrated display showing actual volumetric flow and absolute pressure. • Options for output signals: • Analogue 4 … 20 mA and pulse output • Modbus interface • M-Bus interface • Bluetooth interface for remote sensor settings • Configurable through Android devices • Embedded data logger capable of recording 5-million measurement samples
