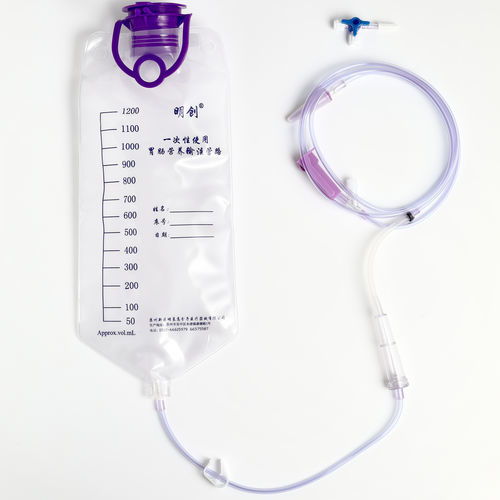

Graduated enteral feeding set

Scope of application:
Used with enteral nutrition catheters to deliver nutrients to the patient's gastrointestinal tract. Suitable for clinical enteral nutrition by gravity infusion or via a nutrition pump.

Product features:

• Multiple interface options to accommodate bottled and bagged nutritional preparations.
• Double-plug series supports both flushing and feeding functions to reduce lumen blockage risk.
• Pagoda joint adapts feeding tubes of different diameters.
• Manufactured from DEHP-free, environmentally friendly materials.
• Compatible with enteral nutrition pumps.

Model and specification:
Available in single-plug and double-plug series. Single-plug interfaces include needle type, bag type, bottle interface and bag interface. Double-plug variants include double bag, double needle, needle-bag and bag-cover combinations.

Table - Models / Infusion Method / Common Interface Types:
Cat.No. - Infusion Method - Common Interface Types
MC01-04A - Gravity Type / Pump Type - Needle puncture device
MC01-04B - Gravity Type / Pump Type - Bottle cap interface
MC01-04C - Gravity Type / Pump Type - Bag interface
MC01-04D - Gravity Type / Pump Type - Bag type
1 - 1 - Needle puncture device / Bag type
2 - 2 - Double needle puncture device
3 - 3 - Double bag type

Technical specifications:

• Model shown on page: AL-SPL01-1200
• Series: single-plug and double-plug
• Single-plug interfaces: needle, bag, bottle interface, bag interface
• Double-plug variants: double bag, double needle, needle-bag, bag-cover
• Suitable for gravity infusion and pump infusion
• Common Cat.No. references: MC01-04A, MC01-04B, MC01-04C, MC01-04D
• Pagoda joint for connecting feeding tubes of different diameters
• Double-plug series enables flushing and feeding to reduce pipeline blockage
• Material: environmentally friendly, DEHP-free
• Compatible with nutrition pumps
