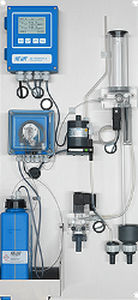

Phosphate analyzer HL AC

controlflowdosing

Colorimetric process analyzer for the automatic, continuous measurement of phosphate. Measuring range: 0.1 to 50 ppm (mg/L) PO4 Based on colorimetric measurement principle. Complete system including measurement and control electronics, photometer, flow indicator, reaction chamber, reagent dosing system and reagent containers. No interferences with silica Control of sample flow and reagent fill level. Factory tested and calibrated. Provides immediate results. Optional accessory: Dual channel option for 2nd sample stream or AMI Sample sequencer for up to 6 sample streams Cleaning module-II Communication interface (RS-232, Profibus, Modbus, 3rd Signal Output, USB) Specifications Phosphate (PO4) Measurement - Measuring range: - Standard operating mode - Extended operating mode - - 0.1 to 25 ppm - 0.1 to 50 ppm Reproducibility - ± 0.01 ppm or ± 2.5% whichever is greater Measurement time - 2.5 minutes Cycle time - 5 minutes up to 30 minutes Power Supply - Voltage - 100-240 VAC (±10%), 50/60Hz or 10-36 VDC Sample conditions - Flow rate - approx. 10 l/h Temperature - up to 50° C Inlet pressure - 0.15 to 2 bar Outlet pressure - pressure free Dimensions - Panel - 400 x 850 x 200 mm
