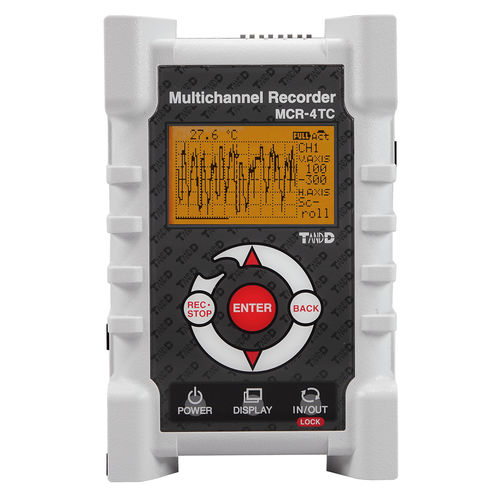

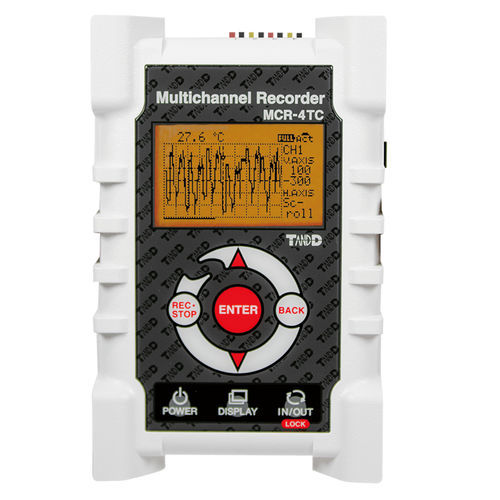

temperature data logger / USB / 4-channel
MCR-4TC

Add to MyMedicalExpo favorites
Compare this product
temperature data logger / USB / 4-channel temperature data logger / USB / 4-channel - MCR-4TC
{{requestButtons}}

Characteristics

  • Data type:

    temperature

  • Other characteristics:

    USB, 4-channel

Description

Overview
Our MCR Series is made up of two types of 4-channel loggers: MCR-4V for voltage and MCR-4TC for wide range thermocouple sensors. They can be mixed and combined for up to 16 channels of simultaneous recording.

For Thermocouple Sensor Types K,J,T,S,R
General Specifications
Measurement ChannelsTemperature 4ch, Thermocouple Type K, J, T, S, R
Measurement Range-270 to 1760°C
Accuracy±0.5°C±0.3% reading (Type K, J, T)
±1.5°C±0.3% reading(Type S, R)
LCD DisplayMeasurements, Battery Level, etc.
Logging Capacity960000
Recording MethodInstantaneous or Average
Recording Intervals18 choices from 100 msec to 60 min
Recording ModeEndless/Onetime
Comm InterfacesUSB
PowerAA Alkaline Battery x 2, AC Adaptor
Operating EnvironmentTemperature: 0 to 50 °C
Humidity: 90%RH or less ( no condensation )
DimensionsH:120mm × W:75mm × D:32mm
Waterproof CapacityNone
Battery LifeApprox. 5 to 60 days
AccessoriesUSB Communication Cable (US-15C), Software (CD-ROM), etc.
