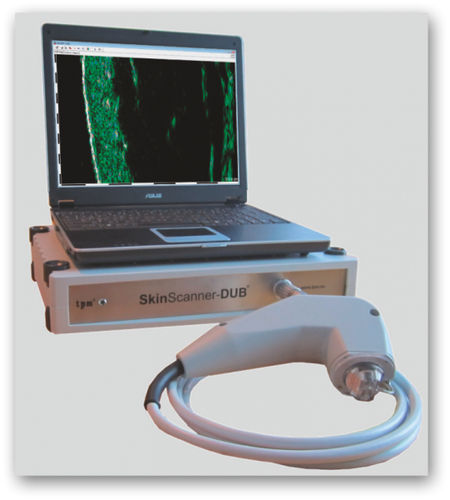

On-platform, tabletop ultrasound system DUB®SkinScanner

for skin ultrasound imaging

The standard system in high frequency ultrasound imaging systems. for 22 or 33 MHz applicators Key features Max. axial resolution: 42 µm at 38 MHz Max. digitizing depth: 16 mm Scan width: 12.8 mm linear (33 µm step width) Medical CE and FDA 510K Connection: USB 2.0 or USB 3.0 DUB SkinScanner software compatible with all Windows operating systems from XP to Windows 8 Viewing modes: B-Scan, RF-Mode, A-Scan, Sum-A, ScanLoop (2000) Filter: Hilbert transformation 7 color scales Measurement: length, area, density, width, depth, ROI, rectangular measuring field Automatic skin thickness Automatic skin density Personalizable: e.g. clinic or doctor‘s name Available applicators Linear B-Scan 22-28 MHz Max. penetration/axial resolution: 10 mm / 57 µm Linear B-Scan 33-38 MHz Max. penetration/axial resolution: 6 mm / 42 µm
