Medical research cell factory Honeycomb

Product Introduction

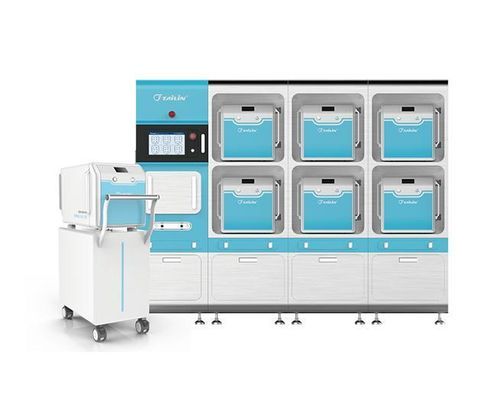

Tailin honeycomb cell culture system is designed for the cultivation of engineered cell products. It is a closed, integrated operating system that satisfies GMP aseptic production requirements and provides a continuous sterile culture environment for cell products. The system combines a honeycomb cell culture incubator with a docking incubator to support large-scale and multi-sample culture workflows.
Features

• Provides a Class A clean environment throughout cell production and culture processes in compliance with GMP.
• Real-time recording and storage of system control and environmental monitoring data for traceability across production batches.
• Compact integrated design reduces footprint and removes the need for extensive cleanroom construction.
• Requires only a Class D or higher external clean environment for installation, lowering construction and operating costs for high-grade cleanrooms.
• Modular design allows flexible expansion of culture capacity to support large-scale and multi-batch production.
• Visual culture process monitoring identifies each independent culture unit and enables batch management; supports FDA 21 CFR Part 11 requirements for electronic records, electronic signatures and audit trails.
• Hydrogen peroxide sterilization technology provides multi-dimensional sterilization for the incubator to ensure a high-security sterile environment.
• Integrated rapid sterilization station allows individual sterilization of culture units.
• Docking incubator enables fast, sterile transfer between incubator and cell & gene therapy isolator to prevent cross-contamination.

Applications
Suitable for cultivation of most engineered cell products on the market. Typical users include large hospitals, cell research institutes, cell therapy companies, GMP sterile laboratories, cell therapy manufacturing sites, and clinical & research centers.
Technical Specifications

• Incubator Volume: 30L, 60L, 100L
• Temperature Setting Range: RT+5~50°C
• Temperature Resolution: 0.1°C
• Temperature Display Error: ±0.1°C (at 37°C)
• Temperature Control Error: ±0.2°C (at 37°C)
• Temperature Control Fluctuation: ±0.2°C (at 37°C)
• Temperature Control Uniformity: ±0.3°C (at 37°C)
• Temperature Insulation: ≤8°C
• RH: ≥90%RH
• CO2 Concentration Control Range: 0%~20%
• CO2 Concentration Display Resolution: 0.10%
• CO2 Concentration Display Error: ±0.1% (at 5%)
• CO2 Concentration Control Error: ±0.3% (at 5%)
• Leak Rate: ≤0.5% Vol/h (test pressure 100 Pa)
• Noise: ≤65 dB(A) during operation
• Power Supply: AC 220V
• Power of Each Incubator: 200–350W
• Data Management: Real-time data recording and data transfer between incubators
• Alarm: temperature high/low; CO2 high/low; water pan shortage; sensor protections and failures; fan failure, etc.
