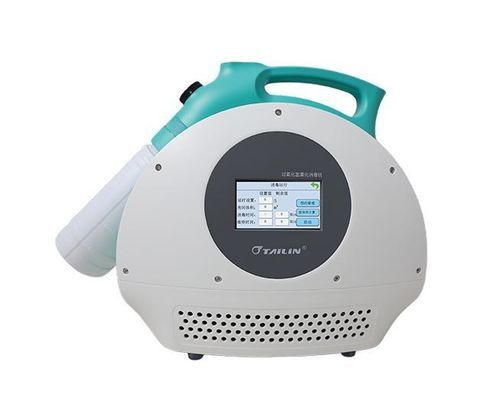

Ambulance disinfectant sprayer FHP3

for laboratoryfor clean roomsfor hospital

Introduction
The Dry Fogger FHP3 utilizes micron-level atomization to convert liquid solution into fine micron-sized particles, producing a dry mist. In this state, H2O2 is rapidly dispersed by high-pressure, high-speed airflow to deliver broad-spectrum, high-efficacy disinfection for air and surfaces.
Features

• Highly efficient broad‑spectrum sterilization effective against vegetative bacteria, spores, viruses and fungi.
• No residue or secondary contamination after bio‑decontamination.
• Uses food‑grade H2O2 solution at concentrations ≤ 8% for material compatibility.
• Ultra‑fine atomized particles with uniform diffusion.
• Lightweight and portable design for flexible deployment.
• Intelligent control with one‑button configuration and start.
• Quick and convenient dosing.
• Wireless remote control (Wi‑Fi) for enhanced operational safety.
• Delay start and scheduled start functions.
• Audio‑visual alarm with tri‑color LED and buzzer.

Applications

• Bio‑decontamination in enclosed spaces such as biosafety laboratories.
• Research institutes and laboratories.
• Pharmaceutical and biotechnology production facilities.
• Animal facilities.
• Hospitals, clinics and other medical facilities.
• Ambulances and mobile medical environments.

Technical specifications

• Model: FHP3 (Dry Fogger)
• Max. sterilization volume: 150 m³
• Sterilant concentration: ≤ 8% food‑grade H2O2
• Solution tank capacity options: 500 mL or 1 L
• Injection rate: ≈ 25 g/min
• Delay start: 30 s (adjustable)
• Control interface: 3‑inch color touchscreen
• Scheduled start: Supported
• Alarm: Tri‑color LED and buzzer (audio‑visual)
• Remote control: Wi‑Fi remote (50–300 m range in open area)
• Weight: 9 kg
• Operating power: 300 W
• Power supply options: AC 220V ±22V 50Hz ±1Hz (standard) or DC 24V (battery)
• Dimensions (W×D×H): 380 × 260 × 380 mm
• Available versions: Standard (AC) and Battery (DC 24V)
