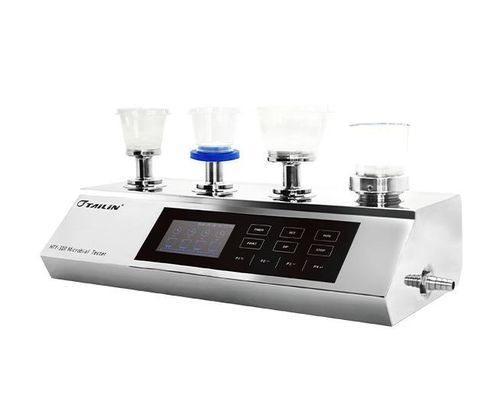

Microbial limit detector HTY-310

for the pharmaceutical industrybenchtop

Introduction
The HTY-310 Microbial Limit Tester is designed to meet pharmacopeial membrane-filtration requirements. It integrates up to four pump heads, SIP automatic sterilization and a built-in diaphragm pump with direct waste discharge. Samples are filtered through membranes to retain microorganisms, which are then incubated to form colonies for enumeration and microbial quality assessment.

Features

• Color LCD with tempered glass touch panel for intuitive control.
• Built-in SIP automatic disinfection program compatible with 121°C moist heat.
• Countdown runtime and configurable pump head runtime per channel.
• Selectable pump heads (PF47, PB47, PF60, PS60) compatible with S60/F47/F60/F47B consumables; pump heads withstand autoclaving.
• Rapid flame sterilization option for continuous operation.
• Integrated diaphragm pump with direct drainage, eliminating the need for filter bottles.
• Built-in check valve to prevent backflow and cross-contamination.

Specifications
Power: AC220V/50Hz
Flow rate: 1500 mL/min (single pump)
Consumables: S60 filtration funnel, F47/F60/F47B
Noise: ≤65 dB(A) (under load)
Dimensions: 500 x 260 x 120 mm
Body material: 316L stainless steel
Weight: 13 kg (with PF47, PB47) / 14 kg (with PF60) / 15 kg (with PS60)

Applications
Used to assess whether non-sterile pharmaceutical products comply with established microbial limits by membrane filtration and colony count.

Pharmaceuticals: testing purified water, water for injection and finished products.

Food & Beverage: total colony count in beverages, mineral and purified water.

Environmental & public health: total bacterial counts and pathogen screening in water samples (e.g., HVAC condensate, drinking water).

Technical specifications

• Model: HTY-310
• Power: AC220V/50Hz
• Flow rate: 1500 mL/min (single pump)
• Pump heads: up to four; compatible with PF47, PB47, PF60, PS60, S60 funnels, F47/F60/F47B
• Sterilization: SIP automatic disinfection; pump heads resistant to 121°C moist heat; flame sterilizable
• Pump: built-in diaphragm pump with direct drainage (no filter bottles)
• Anti-contamination: built-in check valve
• User interface: Color LCD with tempered glass touch panel; 32-bit ARM controller
• Functions: countdown runtime; printable results; user-friendly data recording and management
• Noise: ≤65 dB(A) under load
• Dimensions: 500 x 260 x 120 mm
• Body material: 316L stainless steel
• Weight: 13 kg / 14 kg / 15 kg depending on consumables
