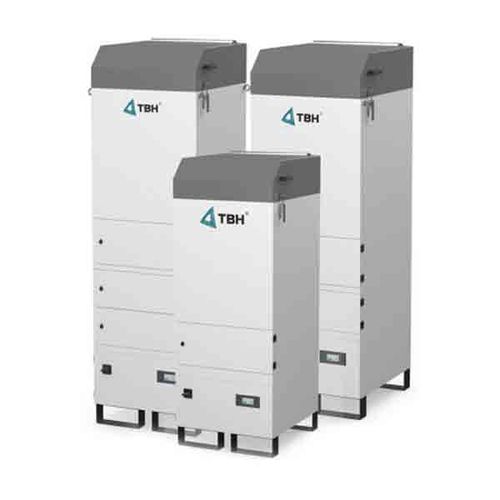

Air filtration system FP 213for the pharmaceutical industrymodular
Add to favorites
Compare this product
Characteristics
- Type of filtration
- air
- Applications
- for the pharmaceutical industry
- Other characteristics
- modular
Description
The FP 213 has a motor power of 1.8 kW and is available as basic model (antistatic filter cartridge, dust class M), with extended filter area due to a particle filter H14 and with an activated carbon filter.
Technical data
Air volume flow - 600 m³/h
Effective air volume flow - 50-500 m³/h
max. static pressure - 15000 Pa
Voltage - 230 V (1P+N+PE) / 380-400 V (3P+PE)
Frequency - 50/60 Hz
Engine power - 1.8 kW
Sound level - approx. 70 db(A)
Type of drive - Brushless motor
Serial interface - Harting (surface-mounted housing with connector insert HAN6B, 24-pin)
