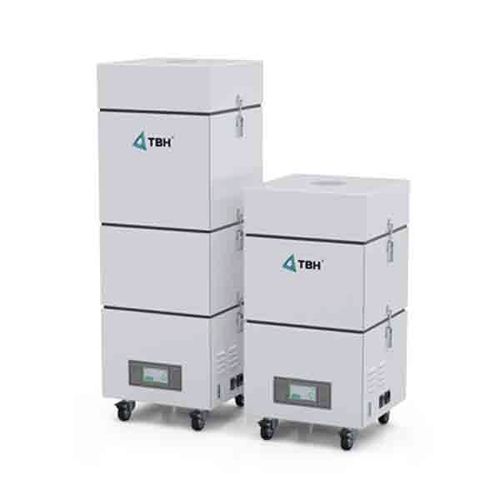

Dust suction system LN 230

The LN series is characterized by its high-performance turbines and is therefore the ideal solution for dust-intensive activities in dental laboratories. Thanks to the possibility of a decentralized arrangement of the filter and extraction systems, the LN series offers flexibility and efficiency in the use of space. This compact system can be adapted to individual requirements with an integrated cabinet for bench work. The LN 230 has been tested and certified in accordance with the strict standards of the Institute for Occupational Safety and Health (IFA). It complies with the standards DIN ISO 12012-1 (2013) and 15012-4 (2016) as well as ISO 21904, which confirms its effectiveness and safety in dust extraction. It also meets the protection level requirements in accordance with the TRGS 528 directive, which guarantees users a high level of safety when extracting hazardous substances. Technical data: Air volume flow: max. 320 m³/h Effective air volume flow: 50 - 250 m³/h Max. static pressure: 20000 Pa Voltage: 100-240 V Frequency: 50/60 Hz Motor power: 1.1 kW Sound level: approx. 62 db(A) Serial interface: 25-pin Sub-D Product variants - Filter configuration: LN 230 Standard: Pre-filter mat (F5), particle filter (H13), activated carbon LN 230 A: Pre-filter mat (F5), activated carbon LN 230 Z: Particle filter (H13), Z-Linepanel Plus filter (F7) LN 230 ZA: Particle filter (H13), Z-Linepanel Plus filter (F7), activated carbon
