Air blast dryer PLUSHINE

dry airhot airinfection control

Tagline
Breathe easy. Dry with precision.

Overview

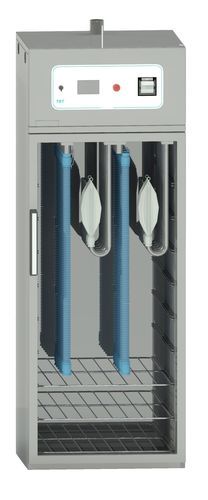

The PLUSHINE Anesthesia Circuits Drying & Warming Cabinets are purpose-built for the demanding needs of modern operating theatres, offering a specialized solution for drying and warming materials with or without lumen including anesthesia hoses, balloons and surgical instruments. Available in both single-door and pass-through configurations with advanced electrical interlock systems, these cabinets provide flexible loading and precise process control.

Key features

• Dedicated slots for up to 36 anesthesia hoses or balloons.
• Space for up to 20 DIN baskets in adjustable shelves or configurable combinations of slots and baskets within a single 410-litre chamber.
• Uniquely engineered airflow system delivering filtered air primarily from the top with additional side support to ensure thorough and consistent drying through every lumen.
• Precise temperature control range from 20–93°C.
• HEPA H14 filtration for filtered air delivery.
• 8 preset drying cycles plus 4 customizable drying cycles.
• Designed to prepare anesthesia circuits for VH2O2 plasma sterilization or for post-disinfection drying.
• Available in single-door and pass-through versions with advanced electrical interlock systems for safe transfer.
• Optional batch documentation systems for traceability.

Construction & controls

• Manufactured from medical-grade AISI 304 stainless steel.
• Intuitive touchscreen controls with comprehensive safety monitoring.
• MDR compliant design.

Applications

• Drying and warming of anesthesia hoses and balloons.
• Drying of surgical instruments and other devices with or without lumen prior to sterilization or storage.
• Preparation of items for VH2O2 plasma sterilization and post-disinfection processing.

Characteristics / Spécifications techniques

• Product family: PLUSHINE Anesthesia Circuits Drying Cabinets
• Chamber volume: 410 litres
• Capacity: up to 36 anesthesia hoses/balloons and up to 20 DIN baskets (configurable, adjustable shelves)
• Airflow: filtered air delivered primarily from top with side support for lumen drying
• Filtration: HEPA H14
• Temperature control: 20–93°C
• Drying cycles: 8 preset + 4 customizable
• Configurations: single-door and pass-through with electrical interlock systems
• Construction material: medical-grade AISI 304 stainless steel
• Controls: intuitive touchscreen interface
• Compliance: MDR compliant
• Optional features: batch documentation systems and comprehensive safety monitoring
