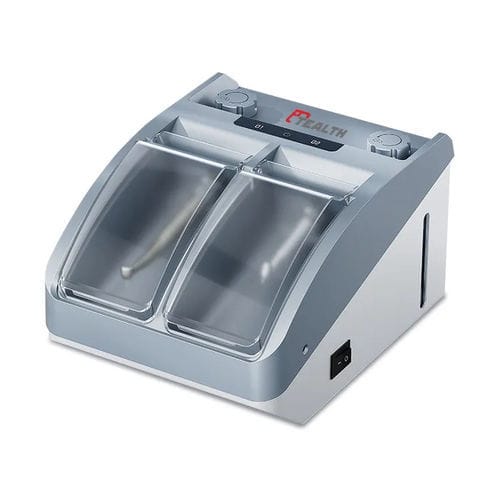

Dental instrument cleaning station C100

automatedair-jet

Brand
TEALTH

Product description

• Can clean, oil-maintain and blow away excess liquid for two handpieces (two high/low speed handpieces or one high-speed and one low-speed handpiece) simultaneously.
• Suitable for maintenance of high- and low-speed handpieces of all major brands.
• Sealed door design minimizes oil mist to ensure a cleaner working environment.
• Intelligent operation mode: no manual setting of oiling time required for each cycle.

Packing

• Cleaning & Maintenance machine: 1 set
• Instruction Manual: 1 pcs
• Drainage pipe: 1 pcs
• Funnel: 1 pcs
• Spare fuse: 1 pcs
• O-rings for low speed handpiece: 4 pcs
• Connector for high speed handpiece: 1 pcs
• Power cord: 1 pcs

Specification
Rated voltage: AC 220V, 50HZ
Power rating: 35W
Air source pressure: 3 kg/cm² ~ 6 kg/cm²
Working pressure: 2.2 kg/cm² ~ 2.5 kg/cm²
Capacity of lubricating oil and cleaning liquid bottles: 308 ml
Parameter of motor - A. Rated voltage: 12V DC; B. Rated power: 6W; C. Speed: 3,000 rpm
Operating ambient temperature: 5℃ ~ 40℃
Net weight: 7.0 KG
Size: 260 X 200 X 318 (mm)
Size of outer packaging: 415 X 325 X 270 (mm)
Warranty: 3 years

Technical specifications

• Rated voltage (main unit): AC 220V, 50HZ
• Main unit power: 35W
• Air source pressure: 3–6 kg/cm²
• Working pressure: 2.2–2.5 kg/cm²
• Motor: 12V DC, 6W, 3,000 rpm
• Fluid bottle capacity: 308 ml
• Operating temperature range: 5℃–40℃
• Net weight: 7.0 KG
• Unit size (mm): 260 x 200 x 318
• Outer packaging (mm): 415 x 325 x 270
• Warranty: 3 years
