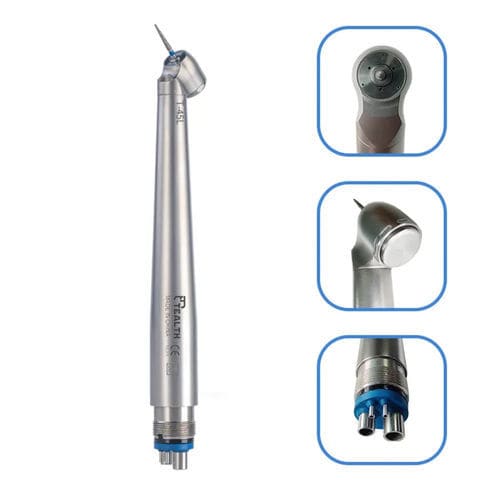

Dental contra-angle T-45

air-driven45°push-button

Product summary
T-45L 45° dental handpiece designed for precise access to posterior teeth. Features a 45° angled one-piece head, LED illumination (>7000 Lux), triple water spray cooling and a rear-exhaust anti-emphysema design to reduce aerosol accumulation. Imported bearings and a balanced cartridge provide smooth, low-vibration operation suitable for routine dental procedures. Sterilizable at 135°C and compatible with fixed 4-hole connections.

Product details
Brand: TEALTH
Product origin: China
Delivery time: Within 3 working days
Supply capacity: 100,000 PCS/Month

Features

• 45° angled head for improved posterior access and ergonomic handling.
• Triple water spray for effective cooling and reduced burr heating.
• Rear-exhaust anti-emphysema design to minimize aerosols and surgical mist.
• Imported high-precision bearings and balanced cartridge for smooth rotation and reduced vibration.
• Bright LED illumination (>7000 Lux) for clear visibility of the operating field.

Specifications table
Order Code: T-45L
CE: 2300PL-45
Bearings: Imported bearings
Infection Control Method: Anti-Backflow
Radial Vibration: <0.02 mm
Bur Holding Force: >22 N
Noise Level: <65 dB
Rotation Speed: >300,000 RPM
Working Pressure: 0.25 - 0.3 MPa
Cooling Water Pressure: 0.2 - 0.23 MPa, >90 mL/min
Cooling Method: Triple water spray
Handpiece Material: Stainless steel
Chuck type: Push-button
Handpiece Interface: Fixed 4-hole connection
Rated Torque: >0.5 N.cm
Light: LED (>7000 Lux)
Sterilization: 135°C
Net Weight: 62 g
Warranty: 1 year
Handpiece Structure: One-piece molded head, open-type core, 45° tilt angle

Technical specifications

• Order Code: T-45L
• CE: 2300PL-45
• Bearings: Imported bearings
• Infection Control Method: Anti-Backflow
• Radial Vibration: <0.02 mm
• Bur Holding Force: >22 N
• Noise Level: <65 dB
• Rotation Speed: >300,000 RPM
• Working Pressure: 0.25 - 0.3 MPa
• Cooling Water Pressure: 0.2 - 0.23 MPa, >90 mL/min
• Cooling Method: Triple water spray
• Handpiece Material: Stainless steel
• Chuck type: Push-button
• Handpiece Interface: Fixed 4-hole connection
• Rated Torque: >0.5 N.cm
• Light: LED (>7000 Lux)
• Sterilization: 135°C
• Net Weight: 62 g
• Warranty: 1 year
• Handpiece Structure: One-piece molded head, open-type core, 45° tilt angle
