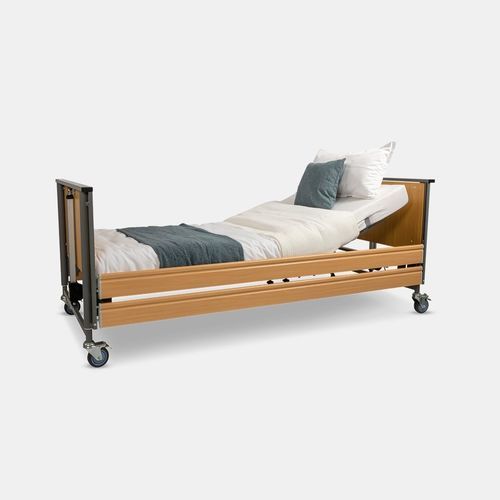

Medical bed Ecofit S

home carenursing homeelectric

Product overview
The Ecofit S care bed is designed for home and long-term care use with a focus on functionality, simple assembly and low maintenance. It supports common clinical adjustments (electric backrest, legrest, height) and accepts mattresses up to 20 cm thick. The bed is supplied with a hook strap for mattress stability and includes safety features appropriate for professional care environments.

Key features (visual icons)
Backrest
0 – 70°
Footrest
0 – 30°
Height adjustment
385 - 810 mm, 220 - 640 mm (Ecofit S Low)
Optional
Trendelenburg / Reverse Trendelenburg (optional)

Models and aid numbers
Ecofit S — Aid number: 19.40.01.3268 — Care aid number: 50.45.01.1306
Ecofit S 100 (100 cm) — Aid number: 19.40.01.3040 — Care aid number: 50.45.01.1079
Ecofit S 120 (120 cm) — Aid number: - — Care aid number: -
Ecofit S Low (90 cm) — Aid number: 19.40.01.5003 — Care aid number: 50.45.01.5001
Ecofit S Low 100 (100 cm) — Aid number: 19.40.01.5006 — Care aid number: 50.45.01.5006
Ecofit S Low 120 (120 cm) — Aid number: - — Care aid number: -
Ecofit S Plus 90-120 — Aid number: - — Care aid number: -
Ecofit S Plus Low 90-120 — Aid number: - — Care aid number: -

Other features

• Mechanical adjustment of the foot section to 5 positions
• 4 × 100 mm castors, individually lockable
• 24 V power supply for increased electrical safety
• Emergency lowering via a 9 V battery in case of power failure
• Handset with single-fault safety and lock function
• Patient lifting pole rated up to 80 kg
• Protection class IPX4

Optional equipment

• 20 cm bed extension
• Trendelenburg / Reverse Trendelenburg function
• Side rail cushions
• Reading light
• Clip-on tray
• Underbed lighting with motion sensor
• Wood panelling for improved appearance (ECOFIT S PLUS)

Technical specifications

• Bed surface: 4-section steel slat surface with mattress guidance at head and foot
• Available dimensions: 90 × 200 cm, 100 × 200 cm, 120 × 200 cm
• Electric height adjustment Ecofit S: 385–810 mm
• Ecofit S Low height adjustment: 220–640 mm
• Maximum patient weight: 185 kg
• Safe working load: up to 220 kg
• Backrest: electrically adjustable up to 70°
• Footrest: electrically adjustable up to 30°; mechanical foot adjustment to 5 positions
• Suitable mattress thickness: up to 20 cm
• Inner panels: wood
• Frame: steel frame painted dark grey
• Castors: 4 × 100 mm, individually lockable
• Power: 24 V supply; emergency lowering via 9 V battery
• Handset: single-fault safety and lock function
• Patient lifting pole load: up to 80 kg
• Protection class: IPX4
• Quick, tool-free assembly; low-maintenance and easy to clean
