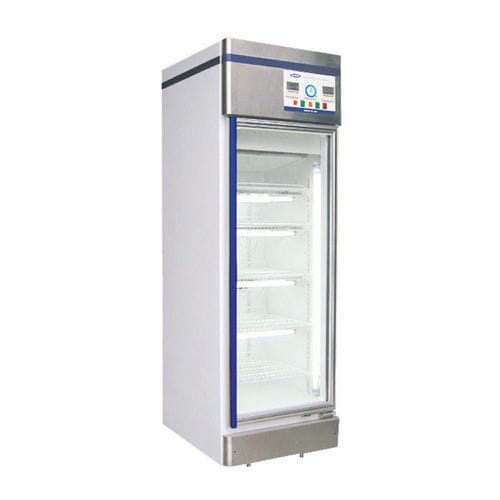

Temperature test chamber GC-500
light1-door

temperature test chamber
temperature test chamber
Add to favorites
Compare this product


Characteristics

Tested parameter
temperature, light
Number of doors
1-door
Temperature range

Min.: 0 °C (32 °F)

Max.: 50 °C (122 °F)

Capacity

500 l (132.1 gal)

Description

Features • Microprocessor control system • 24 hours repeated programs for light intensity and temperature. The 24 hours dial has setting positions of 15 minutes intervals subject to a minimum operating interval for 30 minutes. • Continuous digital display of set and actual temperature to 0.1 °C of day / night cycle. • Illumination by long life fluorescent tubes, with electronic starter. • Forced vertical air flow system provides optimum temperature uniformity throughout chamber. • Automatic bypass hotgas defrost system for accurate temperature control. • Door with fan switch stops circulation fan when door is open – reduces temperature fluctuations. Cabinet constructionPowder-coated mild steel interior and exterior Cabinet insulationCFC-free polyurethane, foam-in-place insulation Temp. working range0°C to 50°C ControllerPID controller Temperature accuracy± 1.0°C (±0.3°C without illumination) Temperature settingDigital setting and display Heater800 watt Safety devicesOver temperature thermostat, built-in overload protection for compressor, ELCB, high-low pressure switches TimerProgrammable 24hr timer controls the temperature & day/night operation of the chamber Illumination6000 LUX Air circulationAided by circulation fan Refrigerator1/4 HP hermetic seal type DefrostAuto defrost Refrigerant134a, CFC free Capacity500 litres Shelves supplied5 pcs Chamber dimensions (mm)535W x 650D x 1430H Overall dimensions (mm)640W x 825D x 2070H Power source240V, 50Hz, 6.6A Weight153 kg
