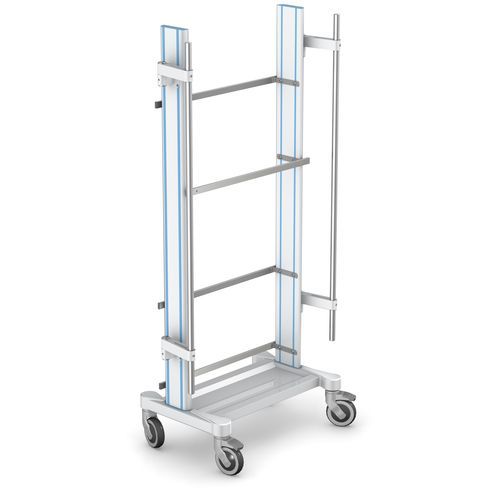

Intensive care trolley PMS series

for medical devicesequipmenttransport

Description
The bedside PMS rail mobile system is designed to organize and support medical equipment at the patient bedside. The system accepts a variety of accessories selected to customer requirements, enabling flexible configuration for different clinical workflows.

• Intended equipment: drip IV pole, power strip, monitor handle, accessories baskets, oxygen tank handles, and other customer-selected accessories

Mobility
The PMS rail system features a mobile base that enables easy relocation of the rack to the optimal position at the bedside.

Construction materials

• Frame: aluminium profile with powder-coating
• Instrumental rail: stainless steel grade 0H18N9 (for mounting medical equipment)
• Base: steel with ABS plastic cover
• Casters: 125 mm diameter; two casters with locking mechanism

Available system variants (from image captions)

• SYSTEM PMS-620-170-W1
• SYSTEM PMS-620-170-W2
• SYSTEM PMS-620-170-W3
• SYSTEM PMS-620-170-W4

Dimensions
Length: 620 mm
Width: 585 mm
Height: 1700 mm

Caractéristiques / spécifications techniques

• Intended equipment: drip IV pole, power strip, monitor handle, accessories baskets, oxygen tank handles and other medical accessories
• Mobile base for easy movement of the rack
• Frame material: aluminium profile with powder varnish coating
• Instrumental rail material: stainless steel grade 0H18N9
• Base: steel with ABS plastic cover
• Casters: 125 mm diameter; two casters with locking mechanism
• Typical system variants referenced: PMS-620-170-W1 / W2 / W3 / W4
• Overall dimensions: 620 mm (length) x 585 mm (width) x 1700 mm (height)
