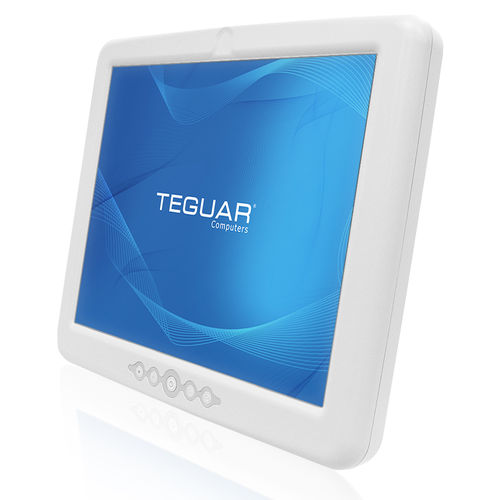

The TM-5010-17F medical computer has taken every consideration into account for seamless digital care. This medical PC is 60601-1 4th edition certified and it's easy to clean anti-bacteria front bezel is IP65 rated. The TM-5010-17F has the highest level of medical safety protection with a low-noise smart fan. Equipped with a high performance 6th Gen Intel Core i3/i5/i7 processor, this PC has a socket type 35W CPU allowing it to deliver fast graphics and keep up with demanding medical software. Intel integrated HD graphics and a wide range of customizable options allow for the optimal computing solution to support your medical team.
Key Highlights
PCI-E Expansion Slot
Optional 4KV LAN/COM/USB Isolated I/O
Supports Intel vPro Hardware Security & TPM v2.0
60601-1 4th Edition Certified
Product Features
The TM-5010-17F medical computer runs on the 6th Gen Intel Core i3/i5/i7 processor, and it has a socket type 35W CPU allowing it to deliver fast graphics and keep up with demanding medical software. This PC has a unique 5:4 screen ratio, necessary for certain medical software programs, and it has a resistive touchscreen, needed in some X-Ray and other medical imaging rooms.
Primary Components
Memory Type 2x DDR4 SO-DIMM
Memory Support 4GB, 8GB, 16GB, 32GB
Storage type 1x 2.5" SATA Drive Bay for SSD/HDD
Storage support - 32GB-1TB
Display
Resolution - 1280 x 1024 (SXGA)
Screen Ratio 5:4
Brightness - 350 nits
Contrast Ratio 1000:1
Viewing Angle 170º (H), 160º (V)
Number of Colors Supported 16.2M
