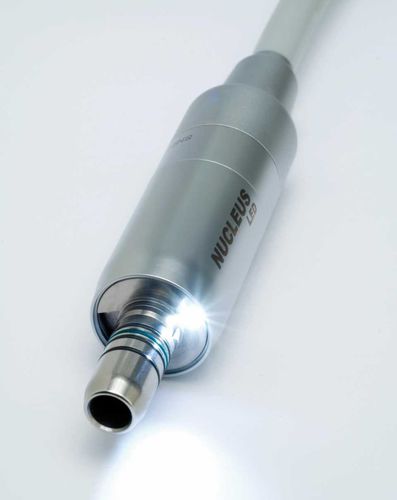

Endodontic micromotor NUCLEUS LED
for dental implantologybrushless electricwith LED light

endodontic micromotor
endodontic micromotor
Add to favorites
Compare this product


Application domain
endodontic, for dental implantology
brushless electric
Lighting technology
with LED light
Other characteristics

Max.: 40,000 rpm (251,327.4 rad.min-1)

Min.: 100 rpm (628.3 rad.min-1)


NUCLEUS LED New high-efficiency brushless 3-phase electric micromotors especially designed for endodontic and implantology procedures. Micromotors are equipped with a non-return device for spray water and can be employed with any straight or contra-angle handpiece with internal spray and connection compliant to ISO 3964 standard. The micromotors are equipped with a LED light source and can be used with any handpiece provided with fibre-optics. The generated 25000-LUX daylight-quality illumination keeps perfectly stable in the whole speed range. Micromotors can be sterilized in autoclave and do not absolutely require any lubrication. Micromotors must be used together with the special new BMC60 electronic board which has been designed to be easily installed in any dental unit with very simple wirings. The Auto-Stop, Auto-Reverse, Auto-Forward, Rocking functions and a precise Torque control can be easily setup and controlled by means of the BMC60 electronic board. Micromotors comes with a 2-year guarantee. AVAILABLE VERSIONS: - NUCLEUS LED (REF 612.00) for Endodontia - NUCLEUS iLED (REF 614.00) for Implantology Technical Sheet Speed 100 ÷ 40000 giri/min Sterilization In autoclave up to 134 °C / 2 bar Compliance ISO 14457, ISO 3964, IEC 80601-2-60, CEI EN 60601-1, CEI EN 60601-1-2 Weight 81 g
