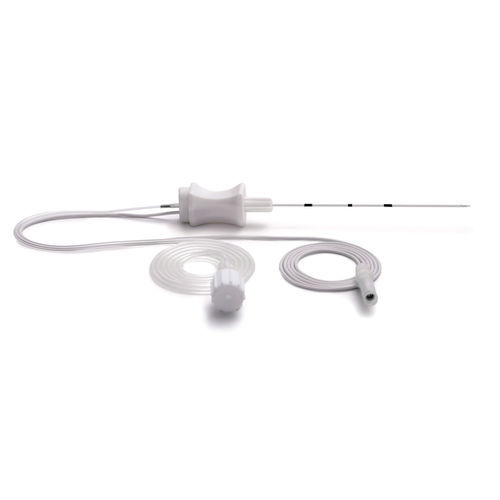

Nerve stimulation needle 02070-23

sterileatraumatic23G

The UPA stimulation needle is a unique injection cannula equipped with an a-traumatic pencil tip bevel and intended for peripheral blocks with stimulation. The surface treatment of the steel allows a smooth sliding inside the tissues and a precise stimulation through the needle tip.

Features

• Ergonomic injected handle (mono-block) reduces the risk of leakage.
• Equipped with an extension line with Luer connection and integrated electric cable.
• Centimeter marking every 10 mm to check the insertion depth.
• Monopolar cable compatible with all neurostimulators available on the market.

Technical Specifications

• Reference: 02070-23
• Needle size: 23G x 70 mm
• Type: Stimulation needle for peripheral blocks
• Tip: A-traumatic pencil tip bevel
• Surface: Special steel treatment for smooth sliding and precise stimulation
• Handle: Ergonomic mono-block
• Extension line: With Luer connection and integrated electric cable
• Marking: Centimeter marking every 10 mm
• Cable: Monopolar, compatible with all neurostimulators
