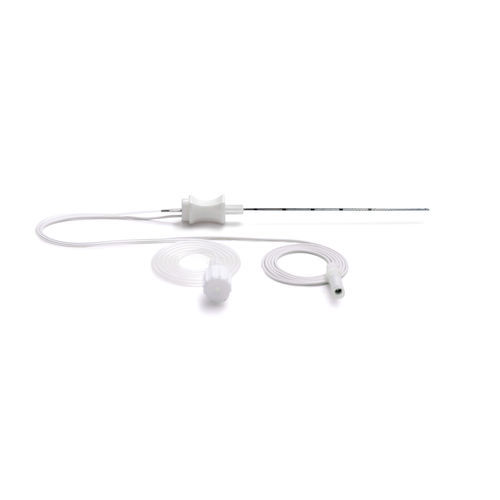

Nerve stimulation needle EH125-21

sterileechogenic21G

The EVOLUTION C Hybrid needle is a unique injection cannula with a 20° bevel designed to combine the technique of nerve stimulation and peripheral blocks under ultrasound. The surface treatment of the steel allows a smooth gliding inside the tissues and a precise stimulation through the needle tip that does not interfere with the ultrasound visualization.

FEATURES

• Ergonomic injected handle (mono-bloc) reduces the risk of leakage.
• Equipped with a 600 mm extension with Luer connection and an electric cable.
• Centimeter marking every 10 mm to check the insertion depth.
• Monopolar cable compatible with all neurostimulators on the market.

ADVANTAGES

• High visibility from different angles (360º) and depths.
• Low penetration force reduces patient pain.
• Direct visualization of the diffusion of local anesthetics.

Technical Specifications

• Type: Hyperechogenic needle with stimulation
• Gauge: 21G
• Length: 125 mm
• Bevel: 20°
• Reference: EH125-21
