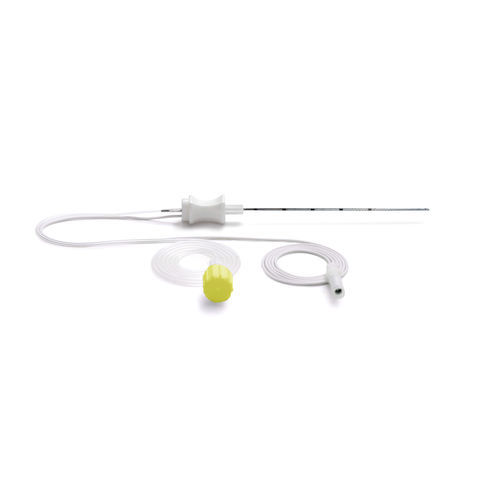

Spinal anesthesia needle 9EHB050-22

sterile22G

The EVOLUTION Hybrid B needle is a unique injection cannula with a 30° bevel designed to combine the technique of nerve stimulation and peripheral blocks under ultrasound. The surface treatment of the steel allows a smooth gliding inside the tissues and a precise stimulation through the needle tip that does not interfere with the ultrasound visualization.

Features

• Ergonomic injected handle (mono-bloc) reduces the risk of leakage.
• Equipped with a 600 mm extension with Neuroaxial connection according to ISO 80369-6 and an electric cable.
• Centimeter marking every 10 mm to check the insertion depth.
• Monopolar cable compatible with all neurostimulators on the market.

Advantages

• High visibility from different angles (360º) and depths.
• Low penetration force which reduces patient’s pain.
• Direct visualization of the diffusion of local anesthetics.

Technical Specifications

• Bevel: 30°
• Needle size: 22G x 50 mm
• Extension length: 600 mm
• Connection: Neuroaxial (ISO 80369-6)
• Reference: 9EHB050-22
