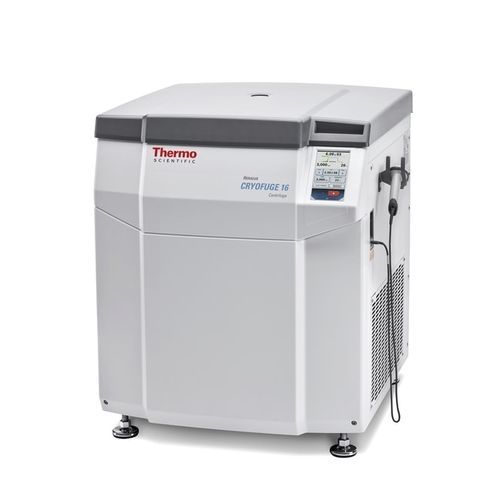

Hematology centrifuge Cryofuge™ 8

clinicalfor blood banksfor platelet-rich plasma

Overview
Enhanced ergonomics and compact refrigerated design streamline traceable, reproducible blood-processing runs. The Thermo Scientific™ Cryofuge™ 8 and 16 blood banking centrifuges are engineered for clinical and transfusion services requiring reliable refrigerated separation and adaptable throughput.

Key features

• Auto-Door™ function: Automatic door opening/closing with push-button operation for safe, efficient sample handling.
• Auto-Lid™ function: Instant rotor access and integrated lid storage to speed workflow.
• Centri-Touch™ interface: High-visibility, glove-friendly touchscreen simplifies run setup and includes Centri-Cross™ for protocol conversion.
• Accumulated Centrifugal Effect (ACE™): Auto-adjusts run time for acceleration/deceleration variations to reduce incomplete platelet separation.
• Eco-Spin™ technology: Energy-saving mode delivering up to 64% power reduction when used with windshielded rotors.

Capacity and workflow flexibility
The Cryofuge 8 is targeted at routine to medium-throughput operations with standard 6 x 550 mL bag capacity (upgradeable to 8 x 550 mL using the same bucket system). The Cryofuge 16 is designed for high-throughput processing with 12 x 500 mL capacity (upgradeable to 16 x 500 mL with appropriate bucket selections). Both models support common adapters for tubes and microplates and comply with current global safety standards.

Software and accessories
Compatible with Centri-Log Plus data management for FDA 21 CFR Part 11 requirements. A selection of adapter kits enables centrifugation of standard tubes and microplates using the same rotor and oval buckets; adapter references are listed in product materials.

Technical specifications

• Certifications/Compliance: UL, FDA listed, CE Marked (MDD 93/42/EEC)
• Controller Type: Centri-Touch touchscreen
• Description: Cryofuge 16 heavy-duty refrigerated centrifuge
• Dimensions (H x W x D): 39.9 x 32.1 x 35.4 in (101.5 x 81.6 x 90.0 cm)
• Drive System: DuraFlex high-torque brushless drive
• Electrical Requirements: 380/400/415 V ±10% 50 Hz 3-phase
• Frequency: 50 Hz
• Green Technology: Refrigeration off when door opens; Eco-Spin windshielded rotors
• Net Weight: 1091.3 lb (495 kg)
• Other Functions: Multilingual UI, on-board training videos, user logging and lock-out, automatic rotor ID, imbalance and over-temperature on-screen alerts, stainless-steel chamber
• Product Type: Blood banking centrifuge, refrigerated
• Profiles: Multiple acceleration/braking profiles (11 accel, 12 decel)
• Run Time: Up to 99:59:59 (1 s increments)
• Standards: EN 61010-1, IEC 61010-2-020, IEC 61010-2-101, EN 61326-1 Class B, EN 61326-2-6, EN 62304, EN 62366, EN ISO 14971, EN ISO 13485
• Temperature Range: -20°C to +40°C, adjustable to 1°C
• Warranty: 2 years unit; 5 years power-train (motor shaft and drive); 5 years refrigeration
• Capacity Options: 6–8 x 550 mL (Cryofuge 8), 12–16 x 500 mL (Cryofuge 16)
• Max RCF: 7,187 x g
• Max Speed: 4,700 rpm
• Product Line: Thermo Scientific
• Refrigerated: Yes
