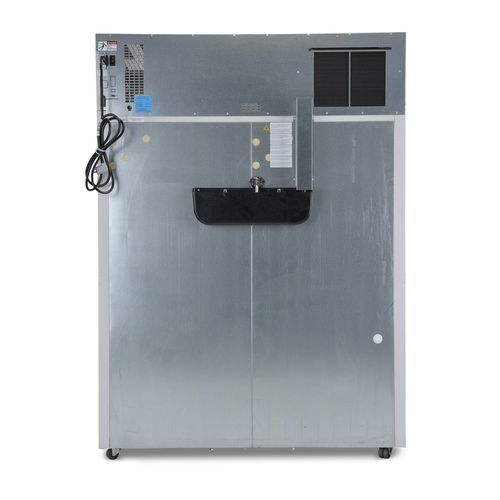

Laboratory refrigerator TSX series

cabinetupright2 doors

Overview
Thermo Scientific™ TSX Series laboratory refrigerators provide regulated 3°–7°C storage for media, reagents, chemotherapy agents, pharmaceuticals and other medical or laboratory-grade products. V-drive adaptive compressor control optimizes temperature uniformity and energy use while maintaining sample protection.

The drive for sample integrity and security

• Designed for secure storage of media, reagents, chemotherapy, pharmaceutical and other lab-grade products at 3°C to 7°C
• V-drive technology detects usage patterns (door openings, load changes) and adjusts compressor speed to maintain temperature while reducing energy consumption
• Microprocessor controller with interior light, setpoint lock and audible/visual alarms
• Standard door locks for controlled access

Enabling compliance

• Tested to GMP Clean Room Class A / ISO 5 & 6 (ISO EN 14644-1); surfaces facilitate cleaning to support USP <797> and <800> workflows
• Certified to UL 471, 61010 and compliant with CE Directives 2011/65/EU and 2015/863

Designed for ergonomic and comfortable use

• Ergonomic soft-touch door handle
• Angled controller to reduce neck strain
• Adjustable epoxy-coated full and half shelves, easy to clean
• Low noise: 52 dBA operational sound level
• Bright LED interior lighting
• Self-closing multi-pane glass or solid doors with 90° stop for inventory handling

Verified sustainability

• ACT Environmental Impact Factor Label Certified for verified sustainability performance
• Natural R290 refrigerant and water-blown foam meet EU F-GAS, U.S. EPA SNAP and other environmental regulations
• Manufactured in a zero-waste-to-landfill facility

Ready for connectivity and monitoring

• Thermo Scientific™ DeviceLink™ Connect ready for remote monitoring of unit performance and sample safety
• Compatible with Thermo Scientific™ Smart-Vue™ Pro wireless monitoring and other remote alarm systems

Make it your own

• Alternate door swing and door types
• Additional and alternate baskets, shelves and drawers
• Free-standing or factory-installed chart recorders
• Stainless steel interior finish
• E-Lock adapter kits available

Available models (Catalog Number | Capacity | Door Style | Plug Type | Electrical)
TSX5005SV | 51.1 cu. ft. | Double Solid | CEE 7/7 | 208-230V, 50Hz
TSX2305GA | 23 cu. ft. | Glass | NEMA 5-15 | 115V, 60Hz
TSX4505GA | 45.8 cu. ft. | Sliding Glass | NEMA 5-15 | 115V, 60Hz
TSX4505GD | 45.8 cu. ft. | Sliding Glass | NEMA 6-15 | 208-230V, 60Hz
TSX4505GV | 45.8 cu. ft. | Sliding Glass | CEE 7/7 | 208-230V, 50Hz
TSX5005GA | 51.1 cu. ft. | Double Glass | NEMA 5-15 | 115V, 60Hz
TSX5005GD | 51.1 cu. ft. | Double Glass | NEMA 6-15 | 208-230V, 60Hz
TSX5005GV | 51.1 cu. ft. | Double Glass | CEE 7/7 | 208-230V, 50Hz
TSX5005SA | 51.1 cu. ft. | Double Solid | NEMA 5-15 | 115V, 60Hz
TSX5005SD | 51.1 cu. ft. | Double Solid | NEMA 6-15 | 208-230V, 60Hz
TSX1205GV | 11.5 cu. ft. | Glass | CEE 7/7 | 208-230V, 50Hz
TSX1205GY | 11.5 cu. ft. | Glass | NEMA 5-15 | 115V, 60Hz
TSX1205GZ | 11.5 cu. ft. | Glass | NEMA 6-15 | 208-230V, 60Hz
TSX1205SV | 11.5 cu. ft. | Solid | CEE 7/7 | 208-230V, 50Hz
TSX1205SY | 11.5 cu. ft. | Solid | NEMA 5-15 | 115V, 60Hz
TSX1205SZ | 11.5 cu. ft. | Solid | NEMA 6-15 | 208-230V, 60Hz
TSX3005GV | 29.2 cu. ft. | Glass | CEE 7/7 | 208-230V, 50Hz
TSX3005GY | 29.2 cu. ft. | Glass | NEMA 5-15 | 115V, 60Hz
TSX3005GZ | 29.2 cu. ft. | Glass | NEMA 6-15 | 208-230V, 60Hz
TSX3005SV | 29.2 cu. ft. | Solid | CEE 7/7 | 208-230V, 50Hz
TSX3005SY | 29.2 cu. ft. | Solid | NEMA 5-15 | 115V, 60Hz
TSX3005SZ | 29.2 cu. ft. | Solid | NEMA 6-15 | 208-230V, 60Hz
TSX5005GY | 51 cu. ft. | Double Glass | NEMA 5-15 | 115V, 60Hz
TSX2305GD | 23 cu. ft. | Glass | NEMA 6-15 | 208-230V, 50/60Hz
TSX5005GZ | 51.1 cu. ft. | Double Glass | NEMA 6-15 | 208-230V, 60Hz
TSX2305GV | 23 cu. ft. | Glass | CEE 7/7 | 208-230V, 50/60Hz
TSX5005SY | 51.1 cu. ft. | Double Solid | NEMA 5-15 | 115V, 60Hz
TSX2305SA | 23 cu. ft. | Solid | NEMA 5-15 | 115V, 60Hz
TSX5005SZ | 51.1 cu. ft. | Double Solid | NEMA 6-15 | 208-230V, 60Hz
TSX2305SD | 23 cu. ft. | Solid | NEMA 6-15 | 208-230V, 50/60Hz
TSX2305GY | 23 cu. ft. | Glass | NEMA 5-15 | 115V, 60Hz
TSX2305SV | 23 cu. ft. | Solid | CEE 7/7 | 208-230V, 50/60Hz
TSX2305GZ | 23 cu. ft. | Glass | NEMA 6-15 | 208-230V, 60Hz
TSX2305SY | 23 cu. ft. | Solid | NEMA 5-15 | 115V, 60Hz
TSX2305SZ | 23 cu. ft. | Solid | NEMA 6-15 | 208-230V, 60Hz
TSX4505GY | 45.8 cu. ft. | Sliding Glass | NEMA 5-15 | 115V, 60Hz
TSX4505GZ | 45.8 cu. ft. | Sliding Glass | NEMA 6-15 | 208-230V, 60Hz

Technical specifications

• Amperage: 15 A (circuit breaker)
• Chart recorder: Optional
• Defrost: Automatic
• External depth: 37.8 in / 96.0 cm
• Internal depth: 28.5 in / 72.4 cm
• Internal dimensions (D x W x H): 28.5 x 52.5 x 58 in (72.4 x 133.4 x 147.3 cm)
• External dimensions (L x W x H): 37.9 x 56.5 x 78.5 in (96.2 x 143.5 x 199.4 cm)
• Display: Microprocessor
• Electrical requirements: 208-230V, 50Hz (varies by model)
• Frequency: 50/60 Hz
• Green features: Energy efficient; natural refrigerant
• External height: 78.5 in / 199.4 cm
• Internal height: 58 in / 147.3 cm
• Product line: TSX Series
• Refrigerant: R290
• Smart-Vue compatibility: Smart-Vue compatible
• Temperature setpoint: 3°–7°C (nominal 5°C)
• Type: High-performance refrigerator
• Warranty: Varies by country
• External width: 56.5 in / 143.5 cm
• Internal width: 52.5 in / 133.4 cm
• Capacity: 51.1 cu. ft. (1447 L metric for selected model)
• Certifications: cUL, CE, UL
• Door style: Double Solid (example configuration)
• Monitoring options: Alarm, recorder, remote contacts
• Number of doors: 2 (varies by model)
• Plug type: CEE 7/7 (example configuration)
• Shelves: 8 (adjustable)
• Temperature range: 3°C to 7°C
• Voltage: 208/230 V (model dependent)
• Unit size: Each
