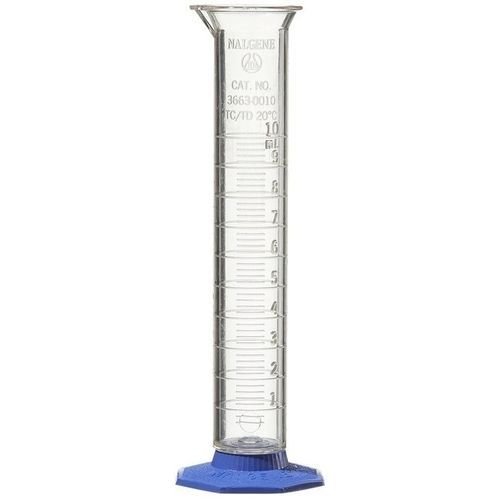

Polypropylene measuring cylinder 3663 series

plasticpolymethylpentenegraduated

Overview
Meet accuracy requirements of ASTM Class B, E1272 and CFR 21, Part 177.1520 (except the 2 L and 4 L sizes) with Thermo Scientific™ Nalgene™ PMP graduated cylinders. All sizes include a wide pouring spout, permanent molded graduations and a wide blue base that prevents accidental tipping. These polymethylpentene cylinders can be chemically sterilized and are food-compatible.

Features:

• No meniscus to confuse readings—eliminates guesswork
• Large octagonal blue polypropylene base prevents rolling and tipping
• Molded graduations
• Excellent chemical resistance for a wide range of solutions
• Withstands temperatures up to 135°C (275°F) in many applications
• Autoclavable (may affect accuracy)
• Transparent

Ordering information:

• Sold individually
• Sizes 10, 25, 50, 100, 250, 500 and 1000 ml have raised graduations on both sides
• 2000 and 4000 ml sizes have standard graduations
• Warranty: 90 days

Variants table
Reference | Capacity (metric) | Graduations | Unit size
3663-4000PK | 4000 ml | 50 ml | Each
3663-0010 | 10 ml | 0.2 ml | Case of 24
3663-0010PK | 10 ml | 0.2 ml | Each
3663-0025 | 25 ml | 0.5 ml | Case of 18
3663-0025PK | 25 ml | 0.5 ml | Each
3663-0050 | 50 ml | 1 ml | Case of 18
3663-0050PK | 50 ml | 1 ml | Each
3663-0100 | 100 ml | 1 ml | Case of 12
3663-0100PK | 100 ml | 1 ml | Each
3663-0250 | 250 ml | 2 ml | Case of 12
3663-0250PK | 250 ml | 2 ml | Each
3663-0500 | 500 ml | 5 ml | Case of 8
3663-0500PK | 500 ml | 5 ml | Each
3663-1000 | 1000 ml | 10 ml | Case of 6
3663-1000PK | 1000 ml | 10 ml | Each
3663-2000 | 2000 ml | 20 ml | Case of 4
3663-2000PK | 2000 ml | 20 ml | Each
3663-4000 | 4000 ml | 50 ml | Case of 2

Technical specifications:

• Autoclavable: Autoclavable
• Calibration: For contained volume, to deliver a specified volume
• Certifications/Compliance: ASTM E1272, CFR 21, ISO 6706, Part 177.1520
• Diameter (imperial): 5.18 in
• Internal diameter (imperial): 4 in
• Diameter (metric): 131.6 mm
• Internal diameter (metric): 101.6 mm
• Limit of error: ± 29.00 ml
• Max temperature (imperial): 293°F
• Max temperature (metric): 145°C
• Quantity: 1/Pk., 2/Cs.
• Graduation increment: 500 ml to 4000 ml in 50 ml increments
• Shape: Round
• Tolerance: ±29 ml
• Base type: Hexagonal
• Capacity (metric): 4000 ml
• Graduations: 50 ml
• Height (imperial): 23.9 in
• Height (metric): 607.1 mm
• Material: Polymethylpentene
• Product type: Graduated bottle
• Unit size: Each
