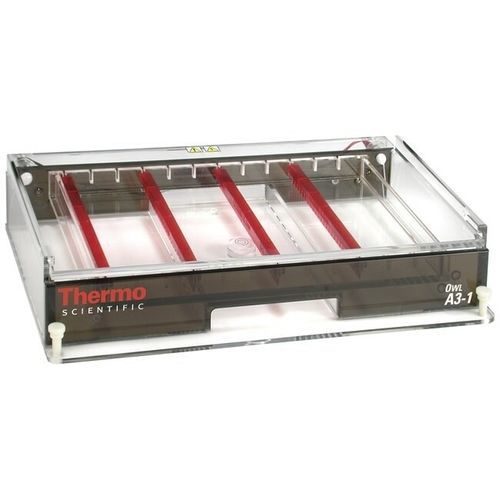

Agarose gel electrophoresis system Owl™ A3-1

horizontal

Product overview:
Use the Thermo Scientific™ Owl™ A3-1 large-gel electrophoresis system for horizontal agarose separations requiring high sample throughput and flexible gel sizing.

Features:

• Horizontal system supports 25 to 600 samples per gel
• Gels can be cast at different lengths to conserve agarose when fewer samples are run
• Built-in buffer-exchange ports enable buffer recirculation for extended runs
• UVT gel tray with sealed end openings provides leak-proof sealing without tape
• Integrated leveling ensures flat, uniformly thick gels
• Multiple comb slot positions accommodate varied sample arrangements and resolution needs
• MicroWell-format combs allow rapid, error-reduced loading with multichannel pipettes
• Samples can be loaded directly from a 96-well microplate, 8 or 12 at a time

Product variants (table):
Catalog number | Gel size
A3-1 | 23 cm x 40 cm

Contents:

• Buffer chamber with 3-point leveling base
• Supersafe™ lid with attached power leads
• UVT gel tray
• Four combs (two 25‑well and two 50‑well)
• Integrated buffer-exchange fittings
• Built-in spirit level

Ordering information:
Custom combs available (order SKU # XCM).

Technical specifications:

• Certification / Compliance: CE marking
• Gel size: 23 cm x 40 cm
• Buffer volume: 4.5 L
• Overall dimensions (L x W x H): 53 x 32 x 11 cm (20.63 x 12.5 x 4.25 in.)
• Height: 11 cm
• Length: 53 cm
• Gel length: 40 cm
• Width: 32 cm
• Gel width: 23 cm
• Sample capacity: 25 to 600
• Maximum voltage: 250 V
• Product line: Owl
• Type: Large gel electrophoresis system
• Unit size: Each
