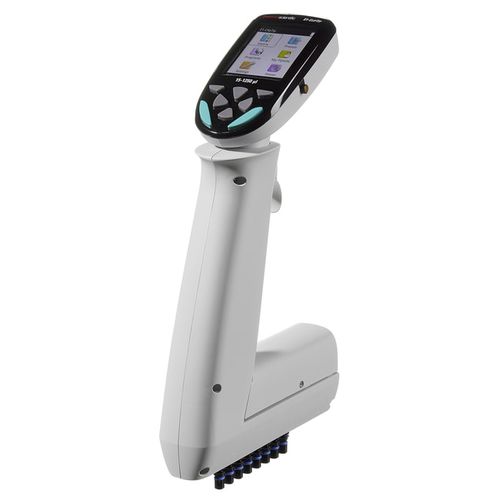

Electronic micropipette E1-ClipTip™

digitalair displacement12-channel

Short description
Automate daily 96- and 384-well microplate pipetting tasks with the sealed-in security of Thermo Scientific™ ClipTip™ technology. These electronic multichannel pipettes provide versatility and customization for a wide range of laboratory workflows and user preferences.

Innovative ClipTip interlocking tip interface technology*

• Tip is locked and sealed in place until ejected — no dropped tips that waste valuable samples
• Complete seal secures the sample volume in each tip for enhanced accuracy and precision
• Tips are attached and ejected with a light touch — eliminates the need to force tips onto or off the pipette

My Pipette Creator to revolutionize the way you pipette with a new era of technology

• New web-based pipetting app powered by Thermo Fisher Cloud
• Enables centralized programming and sharing of protocols between E1-ClipTip pipettes and colleagues
• Provides pre-programmed protocols for many reagent kits and common pipetting workflows
• Connect E1-ClipTip pipette to the app via Bluetooth or USB
• Accelerates collaboration and improves reproducibility from your workstation

E1-ClipTip pipette designed for user comfort and productivity

• Ergonomic design with electronic tip ejection and index-finger pipetting to reduce thumb strain
• Two operating modes: step-based Matrix or Presets for common applications
• Programs function stores up to 30 named Matrix or Preset protocols
• Bluetooth connectivity for convenient linking to the My Pipette Creator app
• Five user profiles to save personalized settings for multiple users and protocols
• MyPipette™ function to customize menu view, create shortcuts and protect settings with a password
• Service and calibration trackers provide reminders for maintenance
• Rechargeable Li-ion battery for long run time and fast recharging (charging stand or plug)
• 2-year warranty with online registration

E1-ClipTip pipette and ClipTip tips for every application

• Available E1-ClipTip volume ranges from 0.5 μL to 1250 μL:
• Single channels
• Multichannels with 8, 12 or 16 channels in 96 and 384 formats
• Adjustable tip-spacing multichannels with 6, 8, 12 channels in 96 and 384 formats
• Wide selection of ClipTip tips:
• ClipTip 96-format tips: 20, 50, 200, 300, 1000 and 1250 μL
• ClipTip 384-format tips: 12.5, 30 and 125 μL
• Packaging options: filtered, sterile, non-sterile, racked and reload

Table: Available catalog numbers and key selection information
Catalog Number | Volume (Metric) | Number of Channels | Compatible Tips
4671000BT | 0.5 to 12.5 μL | 8 | ClipTip 12.5
4671040BT | 2 to 125 μL | 8 | ClipTip 200
4671070BT | 10 to 300 μL | 8 | ClipTip 300
4671100BT | 15 to 1250 μL | 8 | ClipTip 1250
4671010BT | 0.5 to 12.5 μL | 12 | ClipTip 12.5
4671050BT | 2 to 125 μL | 12 | ClipTip 200
4671080BT | 10 to 300 μL | 12 | ClipTip 300
4671090BT | 30 to 850 μL | 12 | ClipTip 1000
4671020BT | 0.5 to 12.5 μL | 16 | ClipTip 384 12.5
4671030BT | 1 to 30 μL | 16 | ClipTip 384 30
4671060BT | 2 to 125 μL | 16 | ClipTip 384 125

Technical features / specifications

• Catalog number (example shown on page): 4671000BT
• Product line: E1-ClipTip™
• Volume (Metric): 0.5 to 12.5 μL
• Number of Channels: 8
• Compatible Tips / For Use With: ClipTip 12.5
• Increments: 0.01 μL
• Model: Bluetooth
• Programmability: Yes
• Color: Pink
• Type: Electronic Pipette
• Unit Size: Each
• Warranty: 2-year
