Health telemonitoring system ThevoSmart

for seniorssmartphonewith alert system

Overview
The My Care Companion home care monitoring system by Thomashilfen is a family-oriented solution for monitoring bed presence, movement, position and moisture to support daily care at home. Status is presented using a clear traffic‑light scheme and important changes trigger push notifications to relatives’ smartphones so caregivers stay informed and coordinated.

Main functions

• Bed-exit alarm
• Positioning/turning interval reminder
• Lack-of-movement alarm
• Moisture detection alarm
• Family support network with push notifications and notification history
• Optional family emergency call (emergency button, bracelet, necklace)

System composition
The system comprises four main parts: the textile bed pad (sensor overlay placed on the mattress), the control box (interprets pad status), the Care Companion Gateway (transmits status and optional emergency calls to the network) and the free ThevoSmart mobile app for operation and monitoring.

Family Emergency Call (optional)

• Emergency button and gateway to create a family alert chain
• Multiple emergency buttons can be used
• Register up to 6 emergency contacts
• Automated call with pre-recorded message plus push notifications to contacts
• Optional emergency bracelet and emergency necklace

Bed pad (textile sensor overlay)

• Placed on the mattress to detect presence, movement and moisture
• Top layer: 100% cotton for a natural skin climate
• Integrated textile sensor for automatic alarms (presence, movement, moisture)
• Membrane textile: water-impermeable and breathable
• Approx. dimensions: 64 x 100 cm
• Washer-safe; specified as approx. 3× thinner than comparable mats
• Double-brushed cotton flannel top for improved lying comfort; breathable multi-layer structure to minimise sweating
• Incontinence coating protects mattress and linen

App, connectivity & management

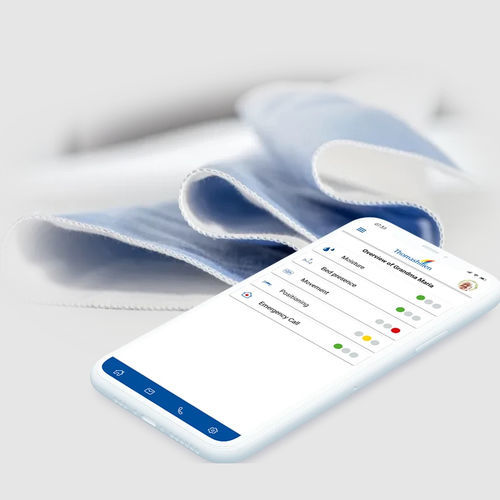

The free ThevoSmart mobile app is used to configure and monitor the system and receives push notifications. Features include a status screen, family care network, care manager/multi-viewer, trends and incident logging. A router/internet connection is required for cloud-based notifications and mobile access.

Installation & extras
Manufacturer describes the installation as simple; app required (free). Optional integration of the smart bed pad (ThevoSmart) into a family emergency chain is supported. The gateway forwards control box status and optional emergency calls to the app/network.

Technical specifications

• Product name: My Care Companion
• Brand: Thomashilfen
• Components: Bed pad (sensor overlay), Control box, Care Companion Gateway, Mobile App (ThevoSmart)
• Bed pad material: Upper side 100% cotton; inner textile sensor; breathable, water-impermeable membrane
• Bed pad dimensions: approx. 64 x 100 cm
• Sensor type: Textile sensor for presence, movement and moisture detection
• Water protection: Membrane textile and incontinence coating to protect mattress and linen
• Thickness: Manufacturer indicates approx. 3× thinner than comparable mats; washable
• Comfort: Double-brushed cotton flannel top
• Connectivity: Router/internet required for gateway-to-cloud and app notifications
• Mobile App: ThevoSmart (free) for notifications, multi-view and care management
• Emergency call options: emergency button, bracelet, necklace; up to 6 registered contacts; automated call + push notifications
• Installation: described as simple by manufacturer
