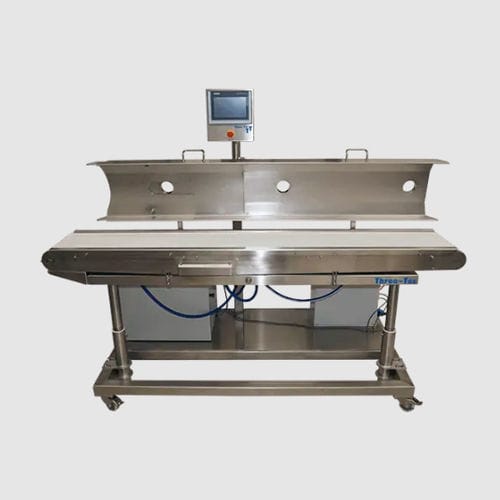

Belt conveyor

for the pharmaceutical industryshort

The cooling conveyor belt is suitable for the gentle removal and efficient cooling of extrudates and granules. The conveyor belt rests on actively cooled cooling elements and is permanently cooled during operation. Air connections in the lid of the cooling conveyor belt allow additional air cooling of the product. The belt speed can be variably adjusted between 0 and 20 m/min. The conveyor belt is controlled by means of an integrated frequency converter or optionally directly via the control system of the Three-Tec extruder. TECHNICAL DATA Length - 2'000 mm Width - 300 mm Height - 600 to 900 mm (adjustable) Angle - 0 to 20° Temperature resistance continuous operation - -30 to 150 °C Temperature resistance short operation - -50 to 180 °C Max. product temperature - 300 °C Cooling capacity - 1.2 kW Flow rate cooling - 35 l/min
