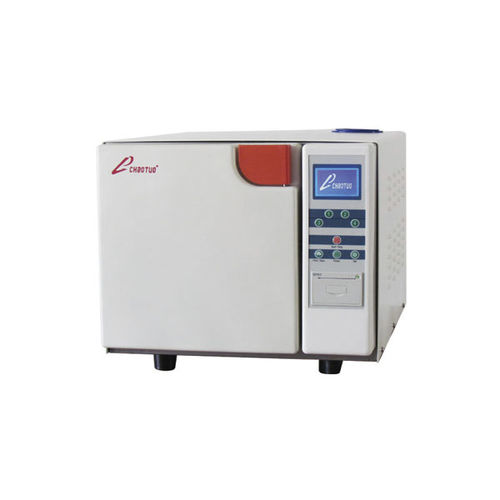

Medical autoclave 23BR
laboratorydentalfor the pharmaceutical industry

medical autoclave
medical autoclave
medical autoclave
medical autoclave
medical autoclave
Add to favorites
Compare this product


Application domain
medical, laboratory, dental, for the pharmaceutical industry, gynecology, ophthalmology, surgical
automatic, microprocessor-controlled, with vacuum cycle, high-capacity, electric
Sterilization chamber material
stainless steel
Temperature range

Min.: 115 °C (239 °F)

Max.: 134 °C (273.2 °F)


Min.: 19 l (5 gal)

Max.: 23 l (6.1 gal)


478 mm (19 in)


620 mm (24 in)

Carrying capacity

Min.: 45 kg (99.2 lb)

Max.: 48 kg (105.8 lb)


385 mm (15 in)

Sterilization cycle time

Min.: 15 min

Max.: 45 min


Feature: 01. Class B, Pre & post vacuum 02. LCD Display to show more working parameters 03. Sterilization temperatures 115℃, 121 ℃ and 134 ℃ 04. 4 preprogrammed cycles ,1- customized programmed cycle 05. Integrated printer for tractability of sterilization cycles 06. Bowie&Dick, Vacuum test and Test Helix 07. Automatic regulation of the temperature 08. Light at the beginning of the cycle; Sound indication of end of cycle 09. No opening of the door during the cycle; Ability to interrupt the cycle at any time 10.Malfunction detection and warning system 11.Safety functions: auto-test program,over heat, over pressure, low water level indicator, safety door lock system present
