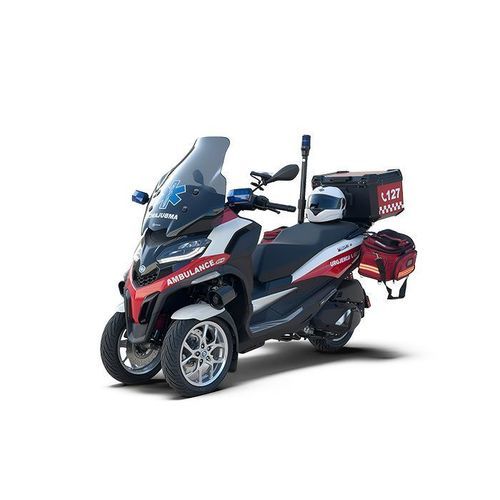

Rescue ambulance Motor

with oxygen cylinder

General Information
Motorcycle Ambulance for Rapid First Aid in Urban Traffic
The Motor Ambulance is TIMAK’s compact and agile solution for traffic-congested cities and hard-to-reach locations. This first responder unit delivers emergency care within minutes, making it suitable for urban rescue, festivals and crowded events. It supports fast intervention when every second counts.

MOTORCYCLE WARNING SYSTEM
1.1 Motorcycle Siren
Model: EXPERT-WM
Voltage: 12 VDC (10.5–15 VDC)
Siren Output Power: 80W RMS
Call Output Power: 40W RMS
Frequency Response: 300Hz–10,000Hz, max ±3dB
Siren Modes: Slow, Fast, Manual, Horn
Functions: Siren, Call, Light Warning Control (optional), Volume Control
Siren Frequencies – Slow: 695 Hz – 1640 Hz in 12.5 h/min interval
Siren Frequencies – Fast: 695 Hz – 1640 Hz in 173 h/min interval
Siren Frequencies – Horn: 500 Hz / 750 Hz with 125 Hz shift

1.2 Motorcycle Speaker HP-1006
Model: HP-1006
Magnet: Neodymium (N35 or N42)
Impedance: 11 ohms (DC resistance max 6 ohms)
Speaker Power: [to be filled if available]

1.3 Front Warning Lights – miniBLINK (2 units)
Model: MiniBlink
Voltage: 12 VDC
Light Source: 6 LEDs (front cross) + 2 LEDs (forward)
Material: Polycarbonate (UV and impact-resistant)
LED Colors: White, Blue, Red, Green
Lens Colors: Transparent, Blue, Red, Green

1.4 Rear Warning Light – maxiBLINK
Model: MaxiBlink
Voltage: 12 VDC (10.5–15 VDC)
Light Source: 12 LEDs
Material: Polycarbonate (UV and impact-resistant)
LED Colors: White, Blue, Red, Green
Lens Colors: Transparent, Blue, Red, Green

1.5 Telescopic Warning Lights – pulse-T (2 units)
Model: Pulse T
Voltage: 12 VDC (10.5–15 VDC)
Light Source: 3 or 6 LEDs
Material: Polycarbonate (UV and impact-resistant)
LED Colors: White, Blue, Red, Green
Lens Colors: Transparent, Blue, Red, Green

Medical Equipment Standard
Item: Vital signs diagnostic kit — Stethoscope, thermometer, glucometer, sphygmomanometer, pulse oximeter
Item: Side bag — 1 large side bag with internal smaller pouches for medical sets

Optional Features
Monitor-defibrillator: [optional/add-on]
Cervical immobilization collars: 3 sizes
Oxygen cylinder: 2L
Motorcycle branding: Reflective, high-visibility colors; Institutional or organizational logos (front, side, rear); Custom lettering (e.g., “EMERGENCY”, “RESCUE”) in durable vinyl; Reflective tape and markings for increased visibility

Caractéristiques / spécifications techniques

• Product type: Motor Ambulance (compact motorcycle-based first responder unit)
• Siren model: EXPERT-WM — 12 VDC, 80W RMS (siren), 40W RMS (call)
• Speaker: HP-1006 — Neodymium magnet, 11 ohms (DC resistance max 6 ohms)
• Front warning lights: MiniBlink (6+2 LEDs), polycarbonate housing, multiple LED and lens color options
• Rear warning light: MaxiBlink (12 LEDs), polycarbonate housing, multiple LED and lens color options
• Telescopic lights: Pulse T (3 or 6 LEDs), polycarbonate, 12 VDC
• Medical kit: Vital signs diagnostic kit (stethoscope, thermometer, glucometer, sphygmomanometer, pulse oximeter)
• Optional medical/additional gear: Monitor-defibrillator, oxygen cylinder (2L), cervical collars (3 sizes)
• Power / Voltage: Most electrical components operate at 12 VDC (typical range 10.5–15 VDC where indicated)
• Materials: Warning light housings – UV and impact-resistant polycarbonate
• Visibility: Reflective and high-visibility branding options; custom lettering and reflective tape available
