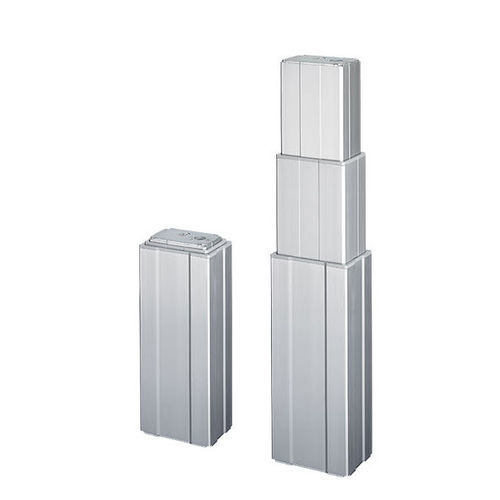

Medical lifting column TL17

for hospital bedsfor delivery bedstelescopic

TiMOTION’s TL17 series electric lifting columns are designed for any height-adjustable workstation applications, such as the medical bed for the healthcare industry. Constructed with an extruded aluminum rectangular appearance, our TL17 lift column provides a high degree of stability. This column makes engineering and design processes easier and the system safer by replacing older style lifting mechanisms that have many moving parts and pinch points. The 3-stage telescopic design provides a greatly reduced retracted height and an increased stroke length. Max. speed at max. load: 11.5mm/s Max. speed at no load: 41mm/s Retracted length: ≥ Stroke/2+150mm IP rating: IPX6 Dimension of outer tube: 169.4*121.4mm rectangular Stages: 3-stage Stroke: 250~1200mm Certificate: IEC60601-1, ES60601-1, IEC60601-1-2 Output signals: Hall sensors Voltage: 12V DC; 24V DC (PTC) Color: Silver, black Operational temperature range: +5°C~+45°C
