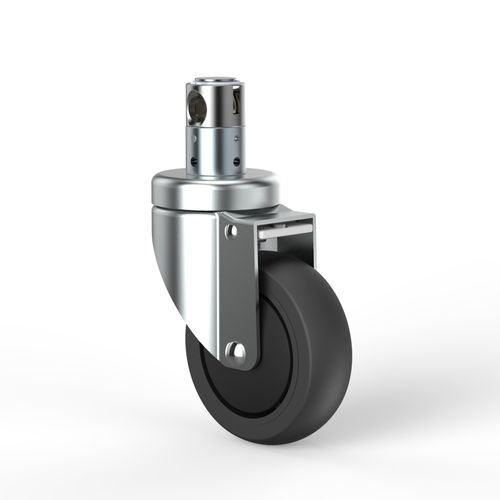

Hospital bed wheel T03ELP100D06Aswiveling
Add to favorites
Compare this product
Characteristics
- Applications
- for hospital bed
- Options
- swiveling
- Load capacity
100 kg
(220 lb)- Wheel diameter
100 mm
(3.937 in)
Description
Housing made of pressed steel, zinc plated.
Swivel head : Precision ball bearing
Wheel center : Precision ball bearing
Wheel: TPE (Thermoplastic Elastomer) 、ELP (Thermoplastic Elastomer) with plastic thread guard.
WIDTH OF TREAD -
31mm
HARDNESS OF TREAD -
shore A 92±3
OFF-SET -
38mm
SWIVEL RADIUS -
88mm
SWIVEL INTERFERENCE -
176mm
OVERALL HEIGHT -
138mm
FITTING -
Central Lock
BOLT DIAMETER -
32mm
BOLT LENGTH -
50L
STANDARD -
DIN EN 12531
WHEEL MATERIAL -
ELP (Thermoplastic Elastomer with Electric Conductive Material)
SPECIAL -
Electric Conductive
LOAD CAPACITY (STATIC) -
200 kgs
